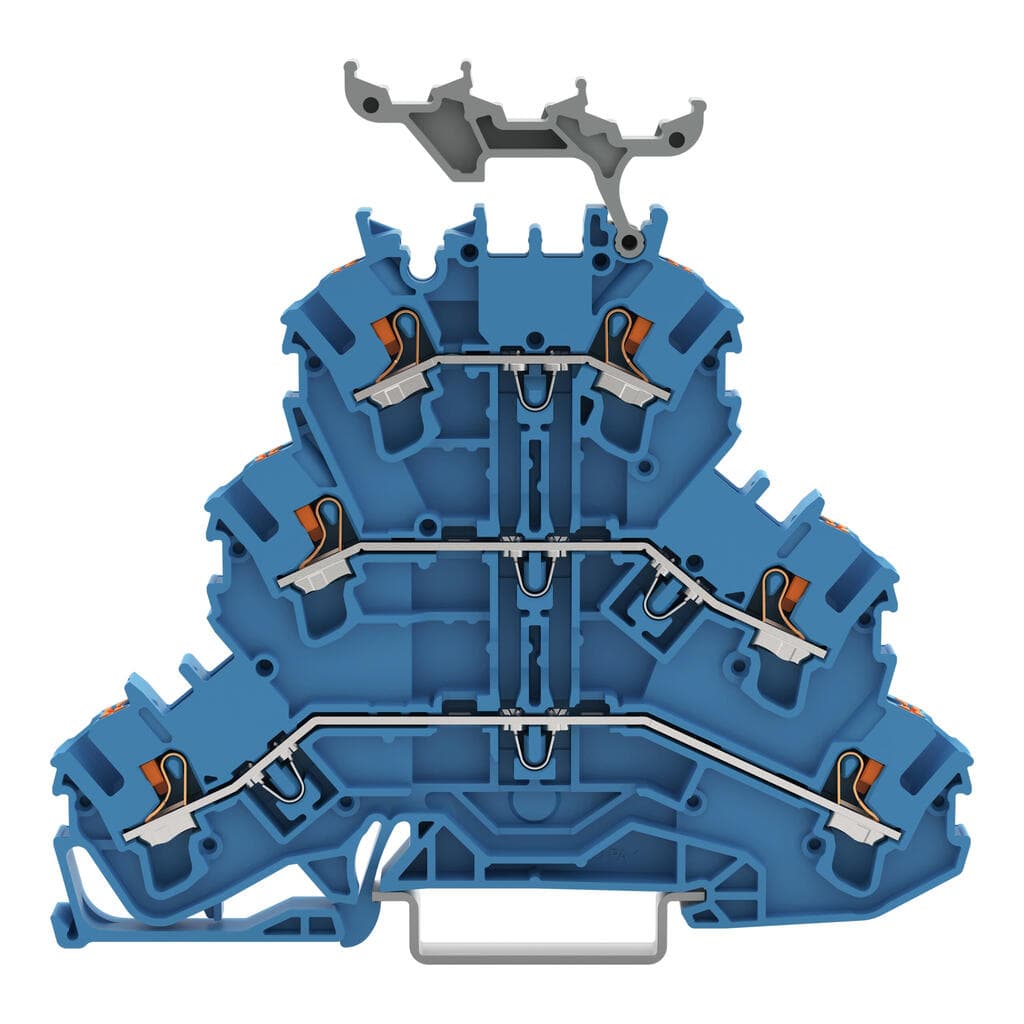

Product Model
2202-3234
Selling Points
- 1Triple-deck design for increased connectivity: Accommodates six wires with three neutral-through poles.
- 2Push-in CAGE CLAMP connections: Easy and secure wire insertion.
- 3Ex e II and Ex i compliant: Suitable for hazardous environments.
- 4DIN-rail mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 5Blue color for easy identification: Enhances visibility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Number of levels | 3 | Number of jumper slots | 6 |
Width | 5.2?mm?/ 0.205?inches | Height | 93.6?mm?/ 3.685?inches |
Depth from upper-edge of DIN-rail | 83.8?mm?/ 3.299?inches | Potential Marking | N/N/N |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.382MJ |
Actuator color | orange | Weight | 17.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966194180 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 22A | Current at conductor cross-section (max.) mm2 | 26A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 440V | Rated current (Ex e II) | 19A |
Rated current (Ex e II) with jumper | 17A | Power loss, per pole (potential) | 0.644W |
Rated current I<sub>N</sub> for specified power loss | 22A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 3 |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 3 |
Specifications may be subject to change without notice
