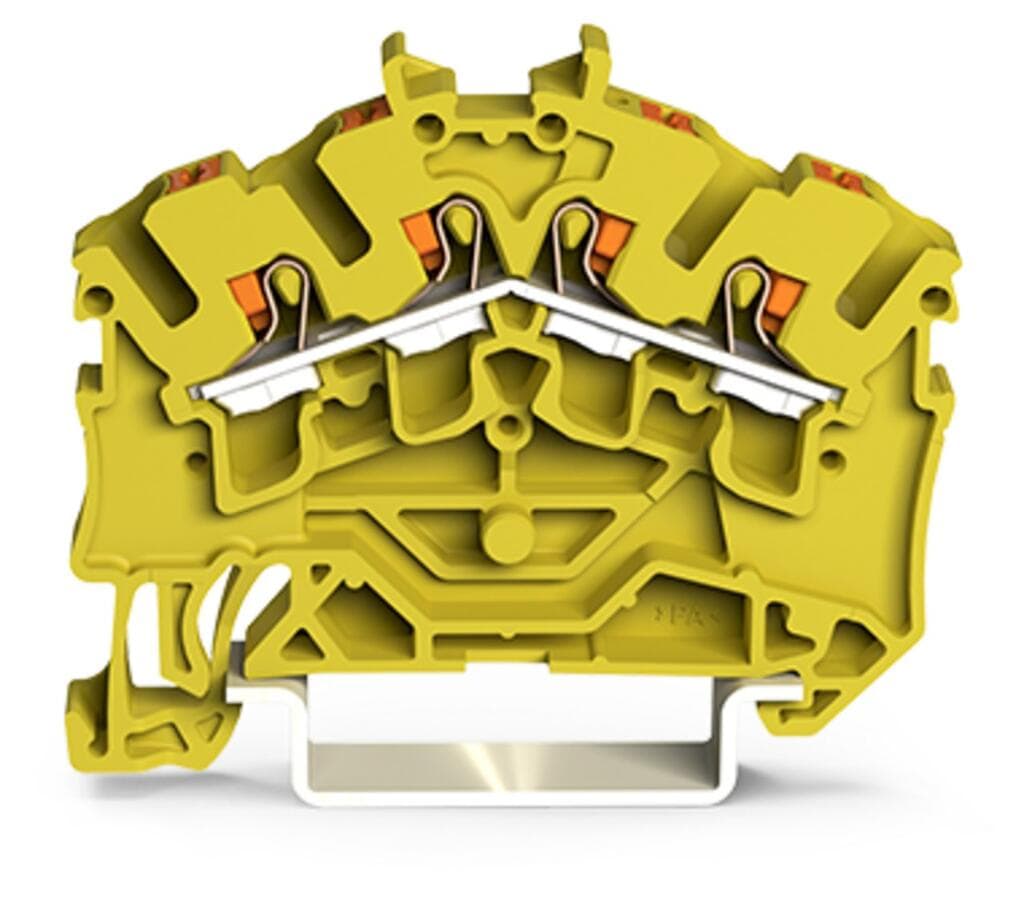

Product Model
2202-6406
Selling Points
- 1Designed for hazardous environments, ensuring safety and reliability.
- 2Easy installation on DIN-rail 35 x 15 and 35 x 7.5, enhancing flexibility.
- 3Quick and secure wire connections using push-in technology.
- 4Supports currents up to 24A and 32A, meeting various industrial needs.
- 5Compatible with wire sizes from 0.25mm² to 4mm² or #22AWG to #12AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | An end plate must be applied when changing from a 3-conductor terminal block to a 4-conductor terminal block and vice versa. | Clamping units | 4 |
Total number of potentials | 1 | Number of levels | 1 |
Number of jumper slots | 0 | Width | 5.2?mm?/ 0.205?inches |
Height | 52.6?mm?/ 2.071?inches | Depth from upper-edge of DIN-rail | 38.9?mm?/ 1.531?inches |
Depth | 45.5 mm / 1.791 inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.032MJ | Actuator color | orange |
Weight | 6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4066966067330 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb) | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 24A |
Current at conductor cross-section (max.) mm2 | 32A | Legend (ratings) | (III / 3) Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 20A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 20A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 20A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 21A |
Rated current (Ex e II) with jumper | 20A | Power loss, per pole (potential) | 0.766W |
Rated current I<sub>N</sub> for specified power loss | 24A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 1 … 2.5?mm2?/ 18 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring, angled |
