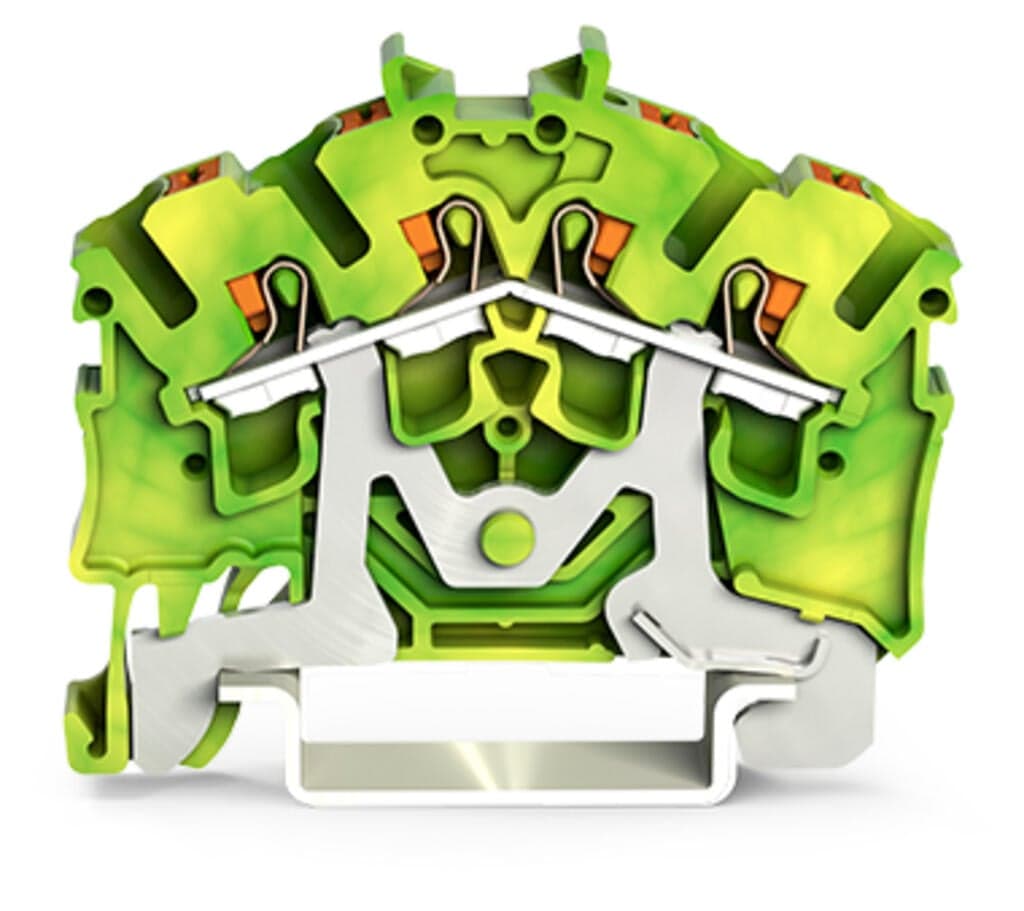

Product Model
2202-6407
Selling Points
- 1Suitable for Ex e II Applications: Ensures safe use in hazardous environments.
- 24-Conductor Ground Terminal Block: Connects four wires with push-in CAGE CLAMP technology.
- 3DIN-Rail Mounting: Easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 4Push-Button Actuation: Simple and secure connection with a push-button.
- 5Rohs Compliant: Meets environmental product compliance standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Notice: This terminal block cannot be commoned with push-in type jumper bars! | Clamping units | 4 |
Total number of potentials | 1 | Number of levels | 1 |
Number of jumper slots | 0 | Width | 5.2?mm?/ 0.205?inches |
Height | 52.6?mm?/ 2.071?inches | Depth from upper-edge of DIN-rail | 38.9?mm?/ 1.531?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.032MJ |
Actuator color | orange | Weight | 9.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4066966067347 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-2 |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 1 … 2.5?mm2?/ 18 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring, angled |
