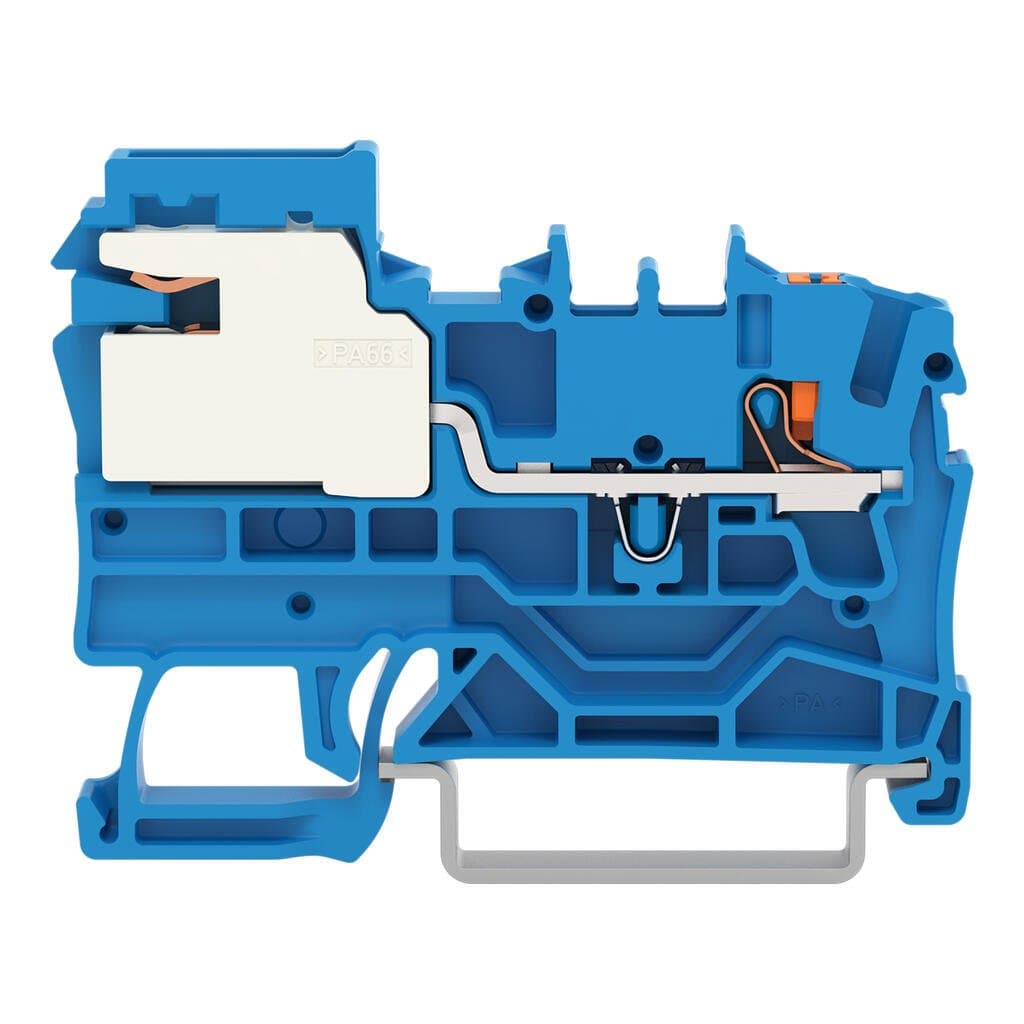

Product Model
2202-7114
Selling Points
- 1Equipped with push-in CAGE CLAMP technology for secure and easy conductor connections.
- 2Made from high-quality polyamide (PA66) for long-lasting performance in demanding environments.
- 3Designed for DIN-rail mounting, offering flexibility in installation and space optimization.
- 4Meets international standards including UL and IEC certifications, ensuring compliance with various industrial regulations.
- 5Features a simple push-in mechanism for quick and efficient conductor insertion and removal.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 5.2 mm / 0.205 inches | Height | 56.6 mm / 2.228 inches |
Depth from upper-edge of DIN-rail | 37.7 mm / 1.484 inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.157MJ | Weight | 8.8g |
Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
ETIM 9.0 | EC001257 | ETIM 8.0 | EC001257 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50 pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966463330 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 24A | Current at conductor cross-section (max.) mm2 | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.362W |
Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4 mm2 / 22 … 12 AWG | Solid conductor; push-in termination | 1 … 4 mm2 / 17 … 12 AWG |
Fine-stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5 mm2 / 22 … 14 AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5 mm2 / 18 … 14 AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12 mm / 0.39 … 0.47 inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
