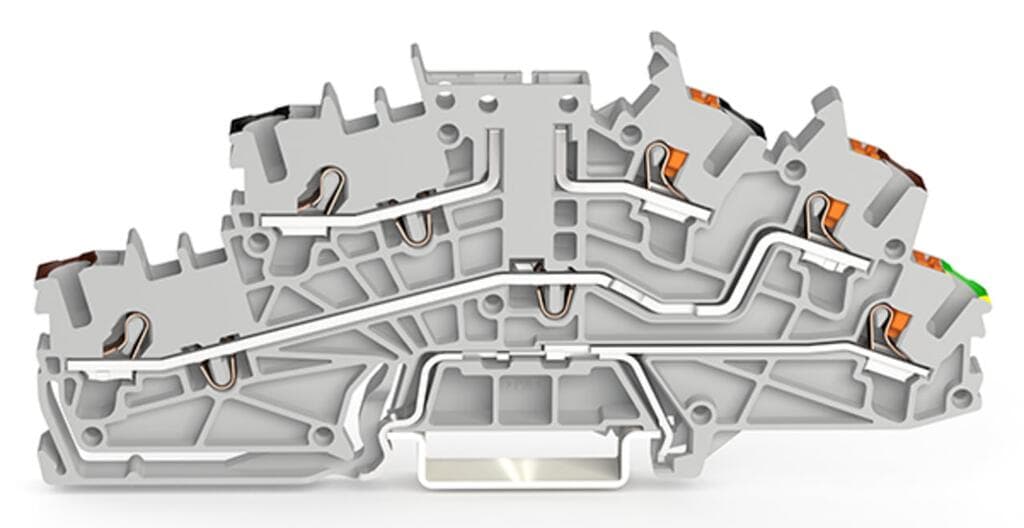

Product Model
2203-6543
Selling Points
- 1DIN Rail Mounting: Mounts easily on DIN rails for compact installations.
- 2Push-In Connections: Simple and secure push-in connections for quick wiring.
- 3High Current Rating: Supports up to 22A current with 250V rated voltage.
- 4Versatile Wire Size: Compatible with 22 AWG to 12 AWG wire sizes.
- 5Compliant with Regulations: RoHS compliant and no SVHC (23-Jan-2024).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5.2?mm?/ 0.205?inches |
Height | 109.7?mm?/ 4.319?inches | Depth from upper-edge of DIN-rail | 46.5?mm?/ 1.831?inches |
Potential Marking | P2/P1/PE | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.335MJ | Weight | 20.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001329 | ETIM 8.0 | EC001329 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4066966123463 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings | Potential - potential |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 22A |
Current at conductor cross-section (max.) mm2 | 27A | Legend (ratings) | (III / 3) Overvoltage category III / Pollution degree 3 |
Rated current (note) | Maximum current depends on accessories used. | Ratings per 2 | IEC/EN 60947-7-1 |
Rated voltage (III/3) 2 | 400V | Rated surge voltage (III/3) 2 | 6kV |
Rated current 2 | 22A | Current at conductor cross-section (max.) 2 | 27A |
Power loss, per pole (potential) | 0.644W | Rated current I<sub>N</sub> for specified power loss | 22A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Wiring direction | Front-entry wiring | Actuation type 2 | Operating tool |
Specifications may be subject to change without notice
