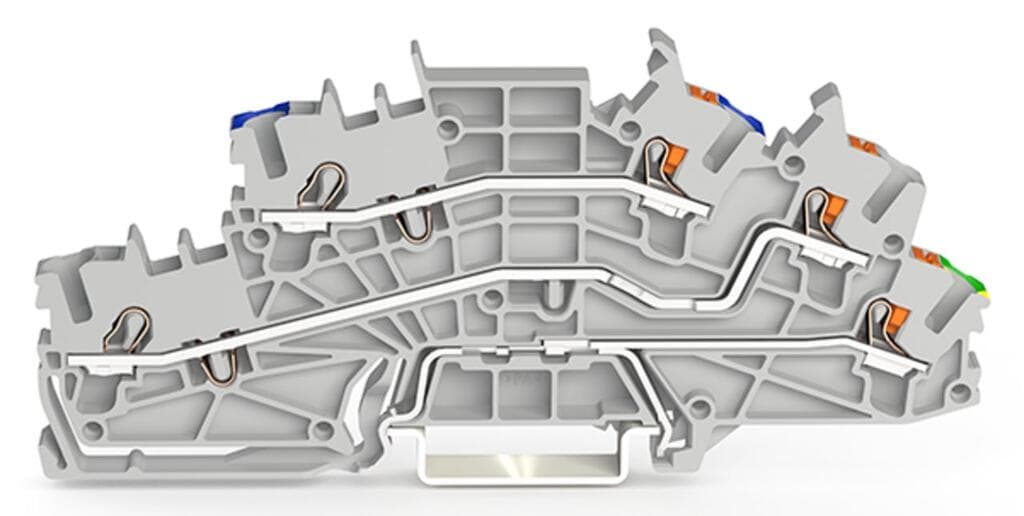

Product Model
2203-6546
Selling Points
- 1DIN Rail Mounting: Easily integrates into DIN rail systems for efficient installation.
- 25 Positions: Accommodates up to five connections for versatile wiring needs.
- 3Push-In Connection: Simplifies wire insertion with push-in technology for quick connections.
- 4High Current Rating: Supports up to 24A, making it suitable for demanding applications.
- 5Compliant with Regulations: Meets RoHS and SVHC compliance standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5.2?mm?/ 0.205?inches |
Height | 109.7?mm?/ 4.319?inches | Depth from upper-edge of DIN-rail | 46.5?mm?/ 1.831?inches |
Potential Marking | N/L/PE | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.331MJ | Weight | 20.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001329 | ETIM 8.0 | EC001329 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4066966165531 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings | Potential - potential |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 24A |
Current at conductor cross-section (max.) mm2 | 31A | Legend (ratings) | (III / 3) Overvoltage category III / Pollution degree 3 |
Ratings per 2 | IEC/EN 60947-7-1 | Rated voltage (III/3) 2 | 400V |
Rated surge voltage (III/3) 2 | 6kV | Rated current 2 | 24A |
Current at conductor cross-section (max.) 2 | 31A | Power loss, per pole (potential) | 0.766W |
Rated current I<sub>N</sub> for specified power loss | 24A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Actuation type 2 | Operating tool |
Specifications may be subject to change without notice
