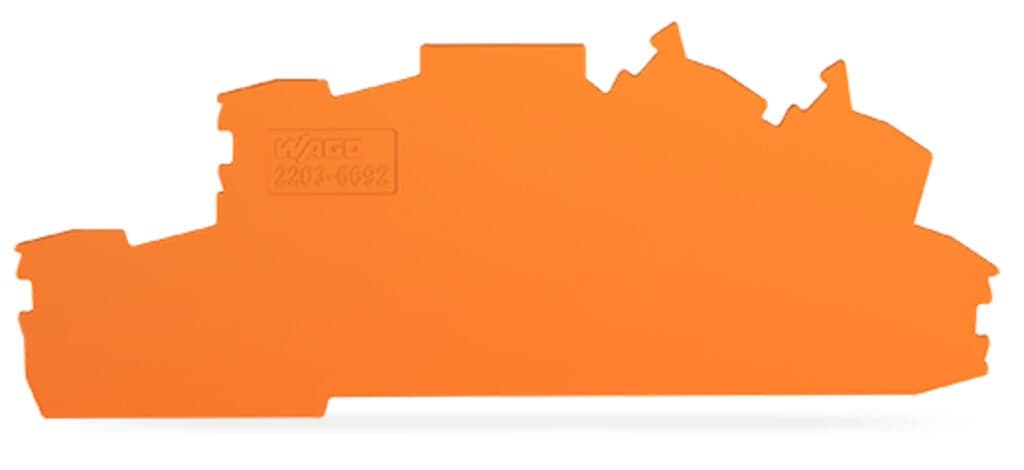

Product Model
2203-6692
Selling Points
- 1High-Quality Material: Made from durable polyamide (PA66) for long-lasting performance.
- 2Easy Installation: Snap-on type mounting for quick and secure attachment.
- 3Compliant with Standards: RoHS compliant and V-0 flammability rating for safety.
- 4Versatile Usage: Suitable for end and intermediate positions in terminal blocks.
- 5Cost-Effective: Available in bulk quantities with competitive pricing options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 0.8?mm?/ 0.031?inches | Height | 108.9?mm?/ 4.287?inches |
Depth | 46.4?mm?/ 1.827?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.101MJ |
Weight | 3.4g | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4066966159554 |
Customs tariff number | 85389099990 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
