Product Model
2204-1403
Selling Points
- 1Ex e II Compliant: Suitable for hazardous environments with Ex e II certification.
- 2Push-in CAGE CLAMP: Easy and secure wire connections using Push-in CAGE CLAMP technology.
- 3DIN-Rail Mounting: Designed for mounting on DIN-rail 35 x 15 and 35 x 7.5.
- 4Test Port Included: Convenient test port for easy diagnostics and troubleshooting.

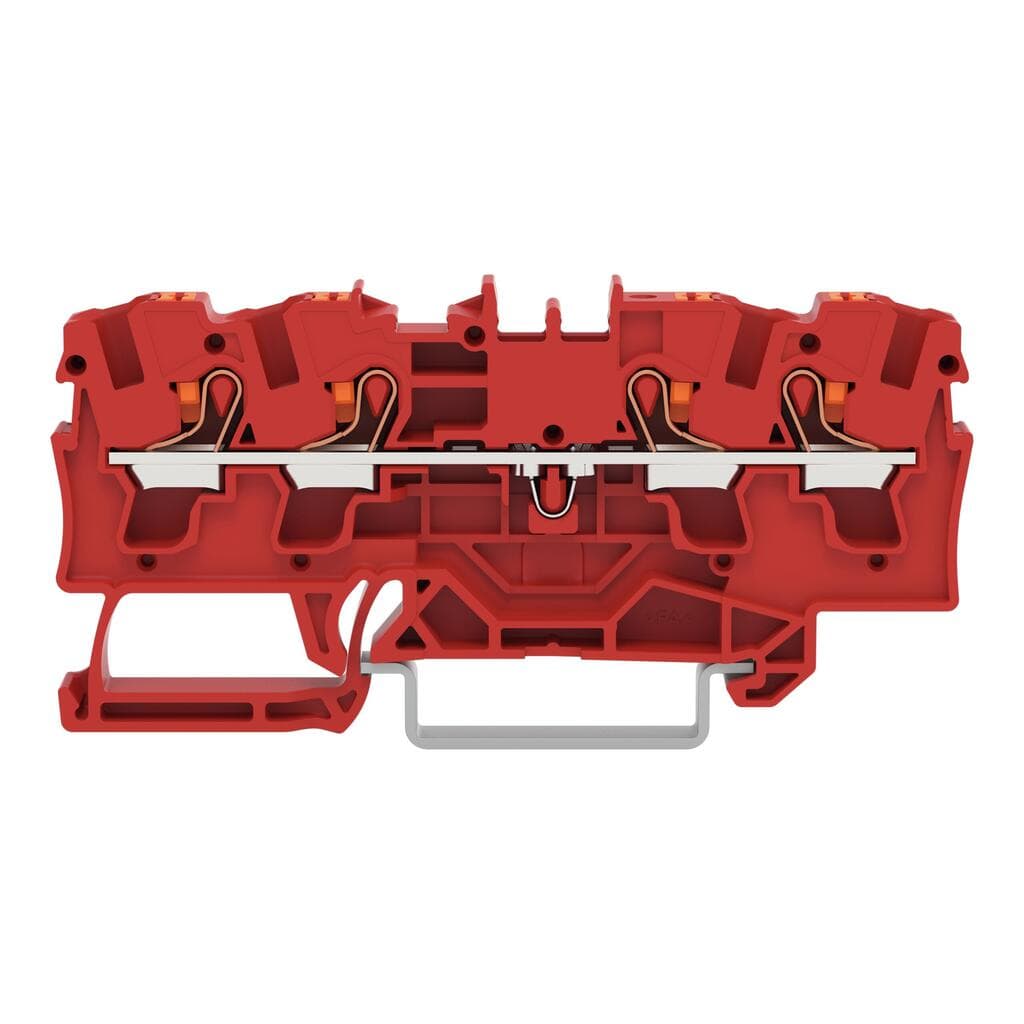

- 5Red Feed-Through Terminal Block: Red color indicates high visibility and safety in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 6.2?mm?/ 0.244?inches | Height | 78.7?mm?/ 3.098?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | red |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.238MJ |
Actuator color | orange | Weight | 11.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966268287 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 18 ATEX 1006 U / IECEx: PTB 18.0013U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 32A | Current at conductor cross-section (max.) mm2 | 41A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 30A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 30A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 30A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 30A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 31A | Rated current (Ex e II) with jumper | 30A |
Power loss, per pole (potential) | 1.024W | Rated current I<sub>N</sub> for specified power loss | 32A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 | Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG |
Solid conductor; push-in termination | 1 … 6?mm2?/ 14 … 10?AWG | Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
