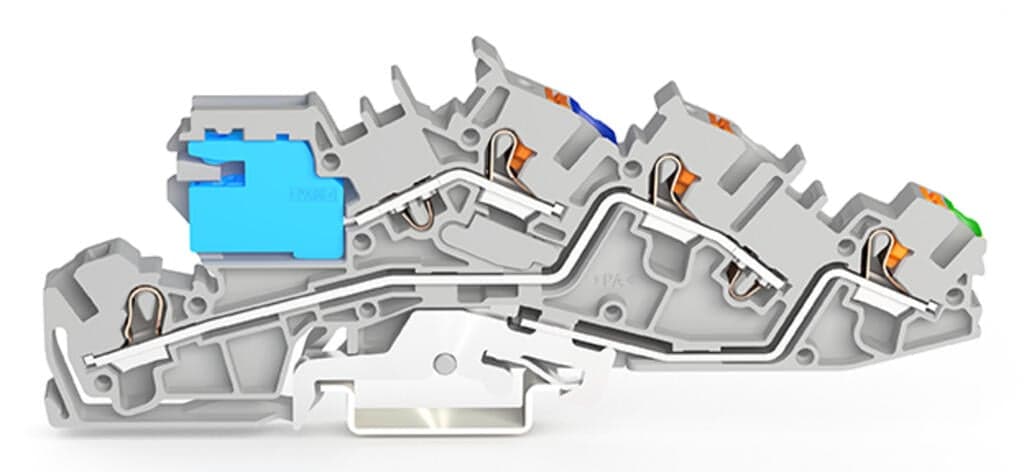

Product Model
2205-7541
Selling Points
- 1Secure Wiring: Equipped with Push-in CAGE CLAMP connections for easy and secure wiring.
- 2Multilevel Design: Two decks with operating slots and a push-button for efficient installation.
- 3Current Rating: Supports currents up to 32A, making it suitable for various industrial applications.
- 4DIN-35 Rail Mounting: Designed for easy mounting on DIN-35 rail systems, enhancing flexibility in electrical installations.
- 5Versatile Wire Size: Accommodates wire sizes from 0.5mm² to 6mm² or #20AWG to #10AWG, ensuring compatibility with different wiring needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 3 |
Number of levels | 3 | Width | 6.2?mm?/ 0.244?inches |
Height | 123.5?mm?/ 4.862?inches | Depth from upper-edge of DIN-rail | 45.6?mm?/ 1.8?inches |
Potential Marking | NT/L/PE | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.369MJ | Weight | 31.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001329 | ETIM 8.0 | EC001329 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4066966165258 | Customs tariff number | 85369010000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 5043f577-ab9f-4301-a82e-d8e248badbfc |
SCIP notification number (Belgium) | f142e57d-1c52-41b3-a76c-761e3cbc3eca | SCIP notification number (Bulgaria) | 67780895-babf-4e7e-8003-1a937cd0ad48 |
SCIP notification number (Czech Republic) | c53390b6-1b10-47d6-bec4-7194a3199576 | SCIP notification number (Denmark) | 774ad633-1dd3-4f95-8548-24b28ce2e36b |
SCIP notification number (Finland) | 9531c644-68fa-4541-9136-649ba72c53da | SCIP notification number (France) | e3c280d2-eaa2-4c24-b47b-4f5841022846 |
SCIP notification number (Germany) | 247065a7-0dc4-422a-b8a4-920024c9171b | SCIP notification number (Hungary) | 2224db7b-2ac9-47aa-84d7-fc8db1bd0881 |
SCIP notification number (Italy) | 85d506e7-9e92-4f20-a675-03bd7c02544c | SCIP notification number (Netherlands) | 3d206382-d205-476c-85e7-79a9d9d5e7e3 |
SCIP notification number (Poland) | eccf75ae-59ea-4e60-aa1c-902c1b85ebf8 | SCIP notification number (Romania) | e1764caf-0ffa-427d-935e-5b091305ba58 |
SCIP notification number (Sweden) | df8ed74e-39ad-4321-b897-c0fbb5f2a366 | Ratings | Potential - potential |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 31A |
Current at conductor cross-section (max.) mm2 | 35A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Ratings per 2 | IEC/EN 60947-7-1 | Rated voltage (III/3) 2 | 400V |
Rated surge voltage (III/3) 2 | 6kV | Rated current 2 | 31A |
Current at conductor cross-section (max.) 2 | 35A | Power loss, per pole (potential) | 1.922W |
Rated current I<sub>N</sub> for specified power loss | 31A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
Actuation type 2 | Operating tool |
Specifications may be subject to change without notice
