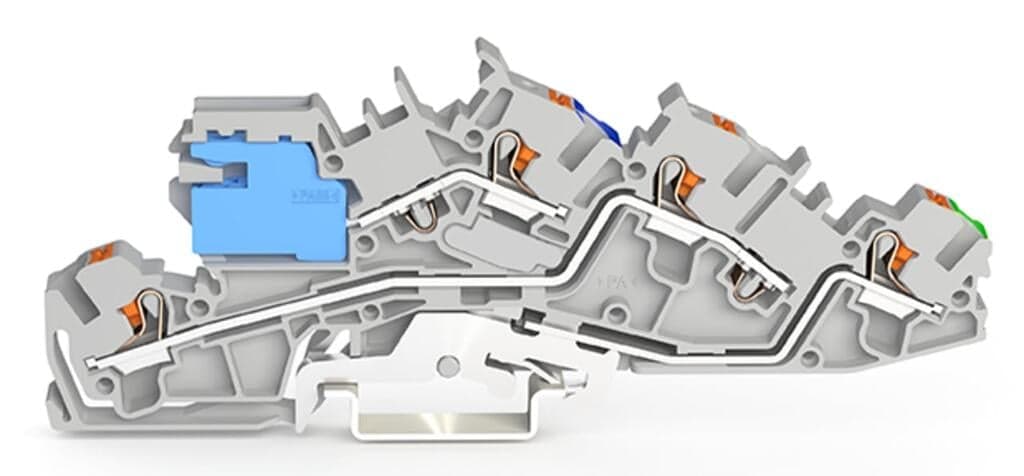

Product Model
2205-7641
Selling Points
- 1Multilevel Installation Design: Ideal for DIN-35 rail mounting with three decks for feed-through, neutral-through, and ground/earthing connections.
- 2Push-Button Actuation: Convenient push-button for easy operation and control.
- 3Push-in CAGE CLAMP Connections: Secure and reliable connections with Push-in CAGE CLAMP spring connections.
- 4Rated Current of 31A/35A: Supports high current applications with a rated current of 31A/35A.
- 5Neutral-Disconnect Slide Link: Includes a slide-link neutral-disconnect for added safety and flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 3 |
Number of levels | 3 | Width | 6.2?mm?/ 0.244?inches |
Height | 123.5?mm?/ 4.862?inches | Depth from upper-edge of DIN-rail | 45.6?mm?/ 1.8?inches |
Potential Marking | NT/L/PE | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.377MJ | Weight | 31.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001329 | ETIM 8.0 | EC001329 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4066966165203 | Customs tariff number | 85369010000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | b168fca8-79b2-4289-81a5-3021abd1d917 |
SCIP notification number (Belgium) | ea5af92e-9798-4960-8a01-b8f0dfda37ab | SCIP notification number (Bulgaria) | 8e07c4c5-0fee-43d5-855b-118787e49aa4 |
SCIP notification number (Czech Republic) | f55932d0-ca2b-4fa4-99f9-e3aa210a4335 | SCIP notification number (Denmark) | 2b49a9ee-6291-4cc8-83e8-bbbcea15a549 |
SCIP notification number (Finland) | e4e6370d-51e8-40a3-90f0-464c86246a33 | SCIP notification number (France) | ffa45d3f-a67d-42b9-bd4b-15200bd0fcbf |
SCIP notification number (Germany) | 14936273-9959-4ef3-bbad-fe4cb15ddce9 | SCIP notification number (Hungary) | 1e003dfb-5b38-4145-9b47-594304e35bba |
SCIP notification number (Italy) | 0ea1f771-4c00-438b-abaf-6f06df636229 | SCIP notification number (Netherlands) | f61a3c37-4bec-4572-b4e7-28c5ad0ae82c |
SCIP notification number (Poland) | 47b564a2-6db0-48a0-abbb-559564c3c75a | SCIP notification number (Romania) | 62ddd5f0-14b3-4c60-82e1-d40648c03ab0 |
SCIP notification number (Sweden) | 31835cda-a2bd-4a48-819c-2f6ab4fad700 | Ratings | Potential - potential |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 31A |
Current at conductor cross-section (max.) mm2 | 35A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Ratings per 2 | IEC/EN 60947-7-1 | Rated voltage (III/3) 2 | 400V |
Rated surge voltage (III/3) 2 | 6kV | Rated current 2 | 31A |
Current at conductor cross-section (max.) 2 | 35A | Power loss, per pole (potential) | 1.922W |
Rated current I<sub>N</sub> for specified power loss | 31A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
