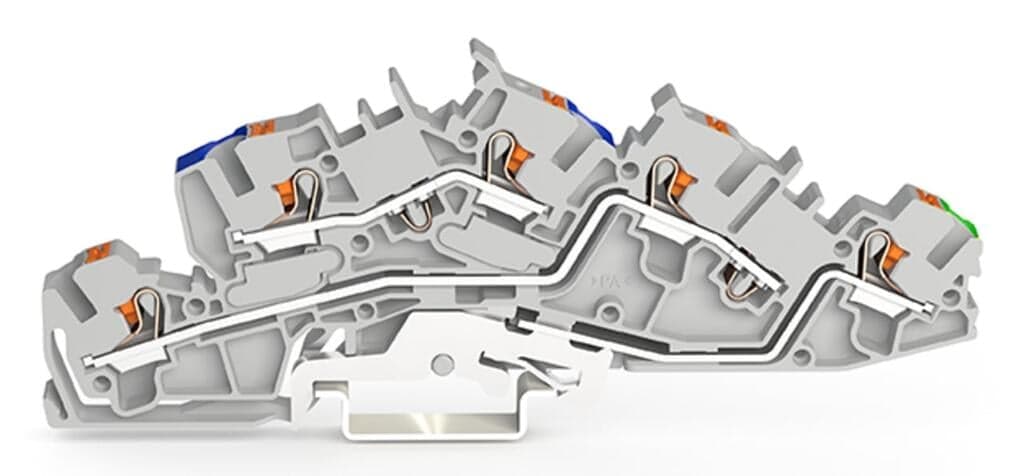

Product Model
2205-7646
Selling Points
- 1DIN-35 Rail Mounting: Designed for easy installation on DIN-35 rail systems.
- 2Push-in CAGE CLAMP: Secure and efficient wire connections with push-in CAGE CLAMP technology.
- 34 mm² Nominal Cross-Section: Supports wire sizes from 0.5 mm² to 6 mm², accommodating various electrical needs.
- 4Three Decks for Connections: Separate decks for feed-through, neutral-through, and ground/earthing connections.
- 5Gray Color and Thermoplastic Material: Durable and easy-to-use gray terminal block made from thermoplastic material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 3 |
Number of levels | 3 | Width | 6.2?mm?/ 0.244?inches |
Height | 123.5?mm?/ 4.862?inches | Depth from upper-edge of DIN-rail | 45.6?mm?/ 1.8?inches |
Potential Marking | N/L/PE | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.403MJ | Weight | 30.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001329 | ETIM 8.0 | EC001329 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4066966165234 | Customs tariff number | 85369010000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 7e3920b7-f996-4c4b-94d4-0f11163647f3 |
SCIP notification number (Belgium) | 59f8ae99-28e7-476a-a835-2a2994441105 | SCIP notification number (Bulgaria) | 96aab7da-fd91-42a0-8aed-8fd98a19332a |
SCIP notification number (Czech Republic) | 6f1f76a5-e888-4767-a36c-2281d6f3943d | SCIP notification number (Denmark) | ba7d3d82-45fb-4c6a-b1a7-aca82927ce10 |
SCIP notification number (Finland) | 43394176-e1f6-4acf-9254-6c404c311008 | SCIP notification number (France) | b07186bb-8d0c-4826-af5a-dd02357854af |
SCIP notification number (Germany) | 35d8568e-bc3c-49e4-a93f-45cd454c3665 | SCIP notification number (Hungary) | d4bf8f7f-3a63-45f5-8409-1e290ce9ae3a |
SCIP notification number (Italy) | 1d8897d5-fddd-494c-bcd1-ed6f08be5975 | SCIP notification number (Netherlands) | f12b51fa-c79a-4341-9c35-841f0d144415 |
SCIP notification number (Poland) | 080cb088-909b-418c-915b-c147828ffbec | SCIP notification number (Romania) | 57dd45fe-d9c2-47c6-85d9-3e1fae25da50 |
SCIP notification number (Sweden) | eea7407f-974b-4365-b371-4ea6d88153bb | Ratings | Potential - potential |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 32A |
Current at conductor cross-section (max.) mm2 | 40A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Ratings per 2 | IEC/EN 60947-7-1 | Rated voltage (III/3) 2 | 400V |
Rated surge voltage (III/3) 2 | 6kV | Rated current 2 | 32A |
Current at conductor cross-section (max.) 2 | 40A | Power loss, per pole (potential) | 1.024W |
Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
