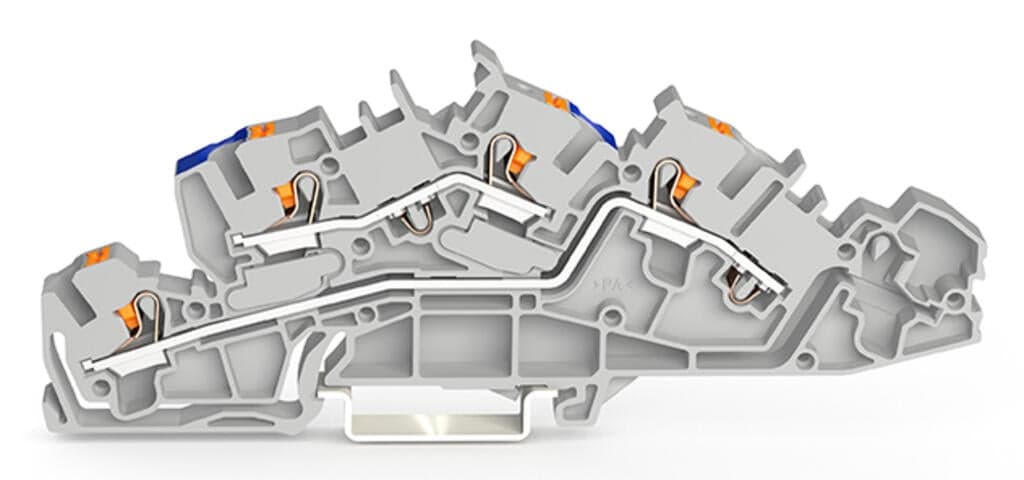

Product Model
2205-7649
Selling Points
- 1DIN-35 Rail Mounting: Designed for easy installation on DIN-35 rail systems.
- 2Push-in CAGE CLAMP: Secure wiring with push-in CAGE CLAMP spring connections.
- 3High Current Capacity: Supports currents up to 32A and 40A for reliable operation.
- 4Multilevel Installation: Features two decks with side and center marking slots labeled "N/L.
- 5Gray Color: Available in gray color for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 3 | Width | 6.2?mm?/ 0.244?inches |
Height | 123.5?mm?/ 4.862?inches | Depth from upper-edge of DIN-rail | 45.6?mm?/ 1.8?inches |
Potential Marking | N/L | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.404MJ | Weight | 21.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001329 | ETIM 8.0 | EC001329 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4066966165241 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 32A | Current at conductor cross-section (max.) mm2 | 40A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.024W |
Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
