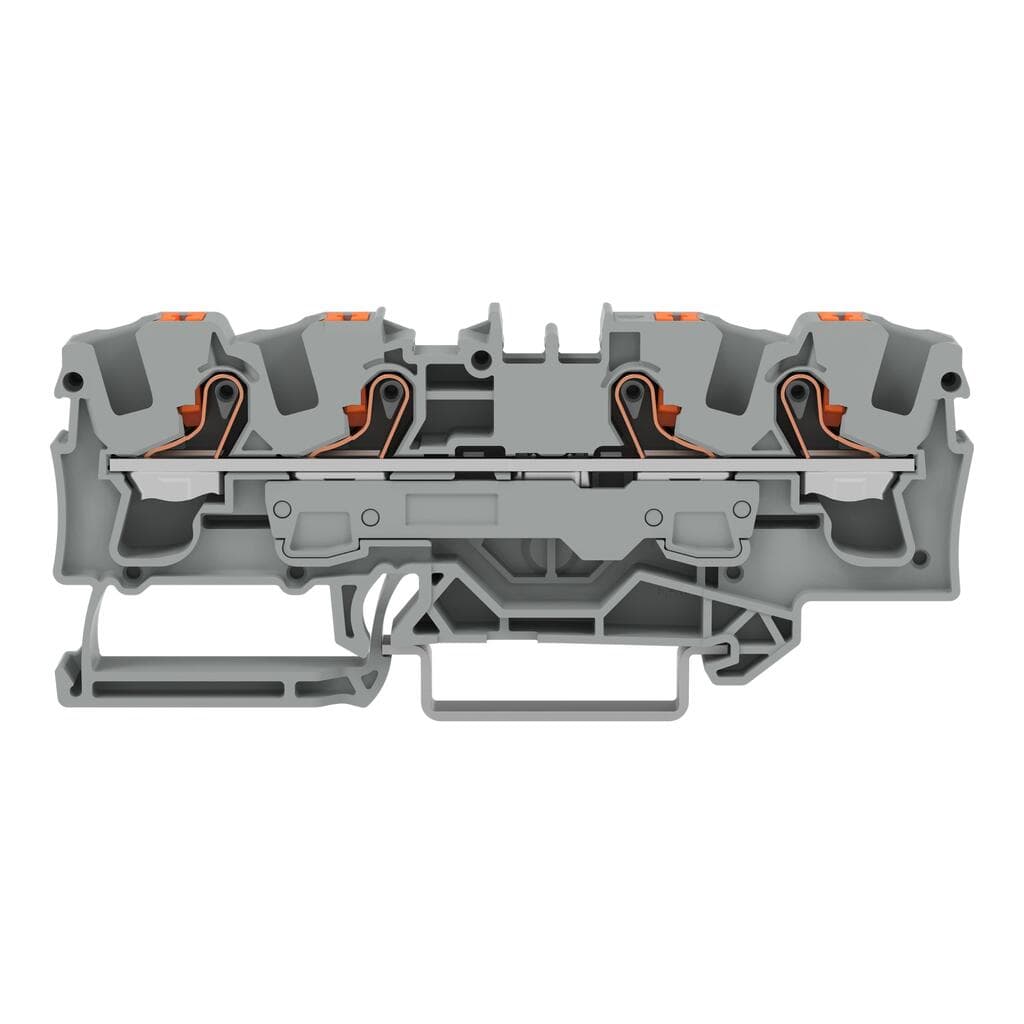

Product Model
2206-1404
Selling Points
- 14-Conductor Terminal Block
- 2Ex e II Rated for Safety
- 3DIN-Rail Mount for Easy Installation
- 4Push-Button for Easy Access
- 5Test Port for Diagnostic Use
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 7.5 mm / 0.295 inches | Height | 89.3 mm / 3.516 inches |
Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.328MJ |
Actuator color | orange | Weight | 16.9g |
Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25 pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966600834 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 18 ATEX 1007 U / IECEx: PTB 18.0014U |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 41A | Current at conductor cross-section (max.) mm2 | 53A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 50A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 50A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 50A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 50A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 41A | Rated current (Ex e II) with jumper | 33A |
Power loss, per pole (potential) | 1.311W | Rated current I<sub>N</sub> for specified power loss | 41A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 |
Solid conductor | 0.5 … 10 mm2 / 20 … 8 AWG | Solid conductor; push-in termination | 1 … 10 mm2 / 14 … 8 AWG |
Stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG | Fine-stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 / 20 … 10 AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6 mm2 / 16 … 10 AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
Wiring direction | Front-entry wiring |
