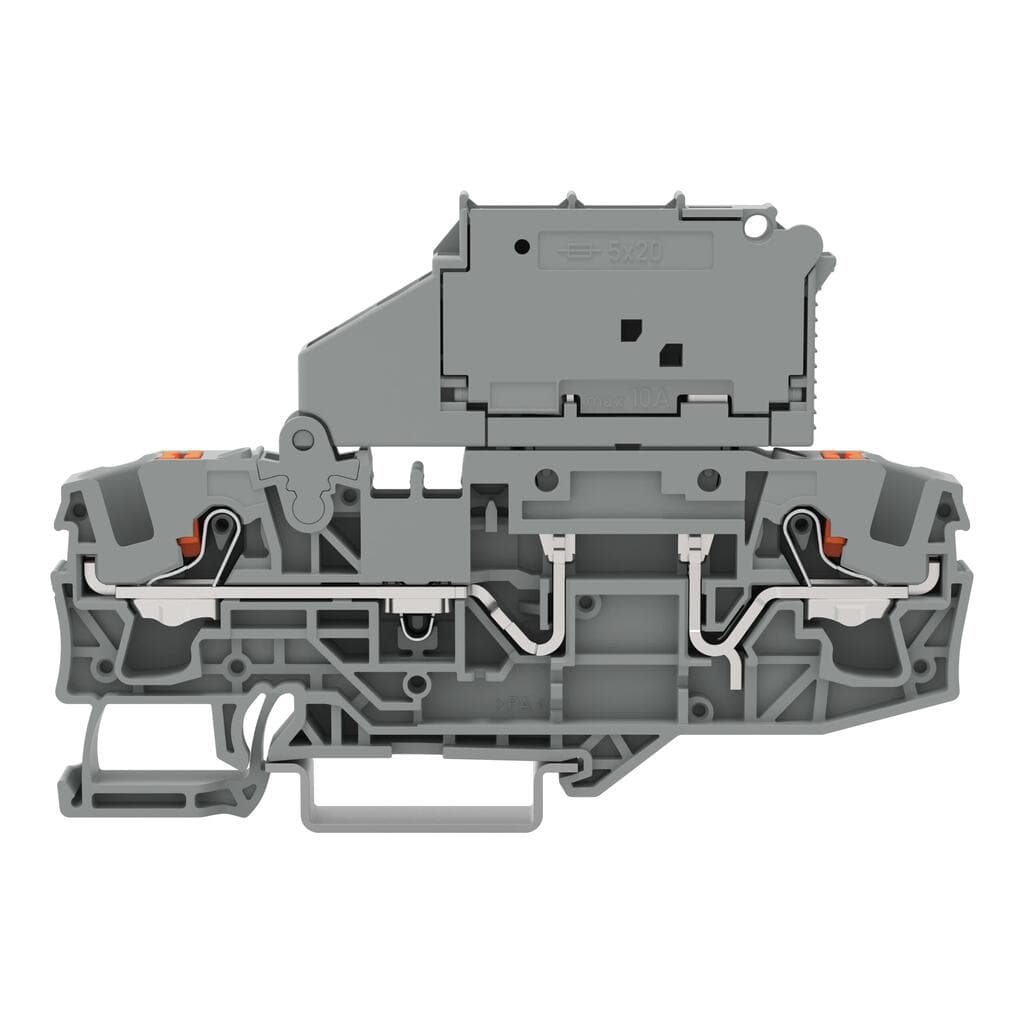

Product Model
2206-1612
Selling Points
- 1Efficient Wire Connection: Designed for easy and secure wire connections using Push-in CAGE CLAMP technology.
- 2Pivoting Fuse Holder: Allows for easy access and replacement of fuses without disrupting the circuit.
- 3DIN-Rail Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5 for versatile installation options.
- 4Compact Design: Ideal for space-constrained applications with a width of 6 mm².
- 5High Reliability: Built with durable materials for reliable performance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 7.5?mm?/ 0.295?inches |
Height | 96.3?mm?/ 3.791?inches | Depth from upper-edge of DIN-rail | 59?mm?/ 2.323?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.476MJ |
Actuator color | orange | Weight | 25g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000899 | ETIM 8.0 | EC000899 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966306194 | Customs tariff number | 85369095000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-3 |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 10A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Ratings (note) | Electrical ratings are given by the fuse. | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 15A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 15A |
Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 1.6W | Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 1.6W |
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 2.5W | Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 2.5W |
Fuse receptacle | pivoting | Fuse type | Cylindrical fuse; 5 x 20 mm |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
