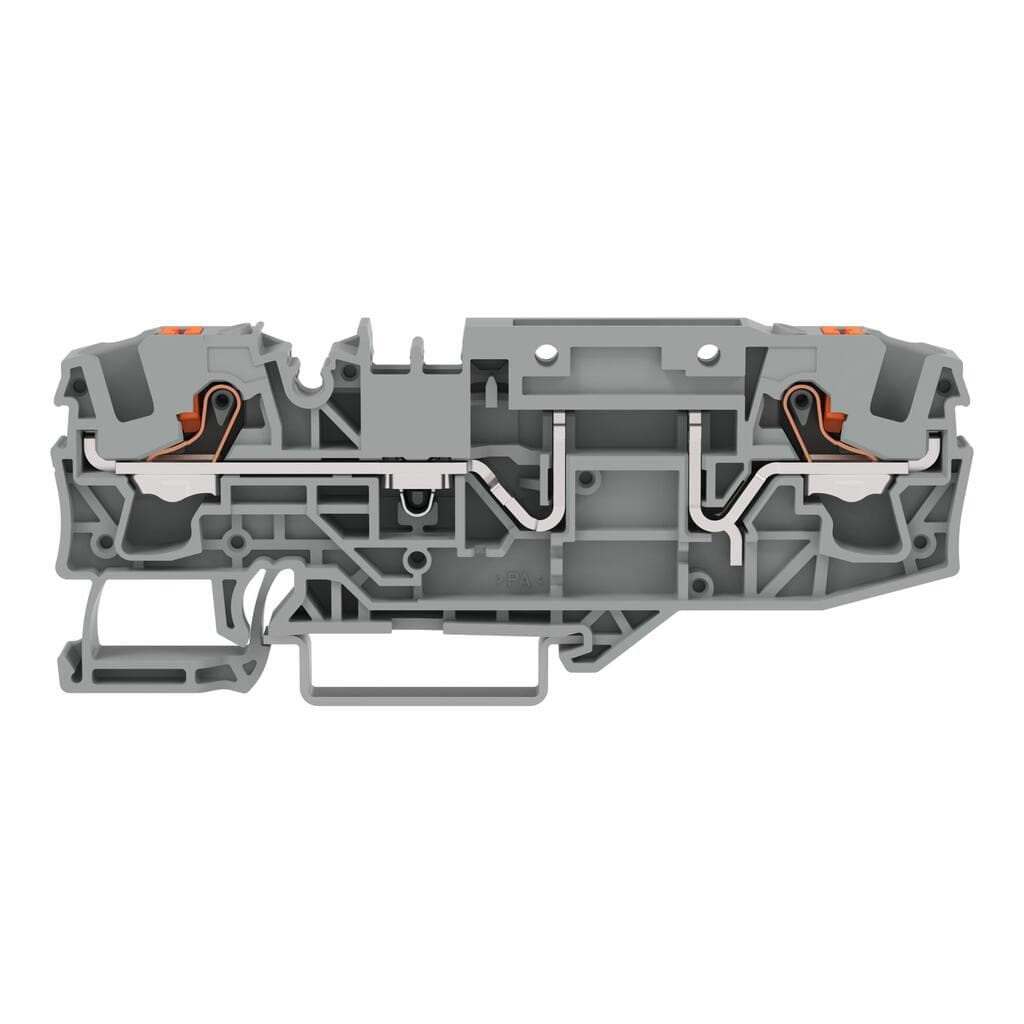

Product Model
2206-1661
Selling Points
- 1High Voltage Rating: 600V voltage rating for safe and efficient operation.
- 2Durable Construction: Made from polyamide (PA66) for long-lasting performance.
- 3Easy Installation: Push-in CAGE CLAMP technology for quick and secure conductor insertion.
- 4Versatile Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5 for flexible installation options.
- 5Compliance Standards: Meets UL 1059 and CSA 22.2 No 158 standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Number of levels | 1 | Width | 7.5?mm?/ 0.295?inches |
Height | 96.3?mm?/ 3.791?inches | Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.342MJ |
Actuator color | orange | Weight | 17.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966306071 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 30A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 30A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 30A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 30A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 30A | Power loss, per pole (potential) | 0.702W |
Rated current I<sub>N</sub> for specified power loss | 30A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 |
Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
