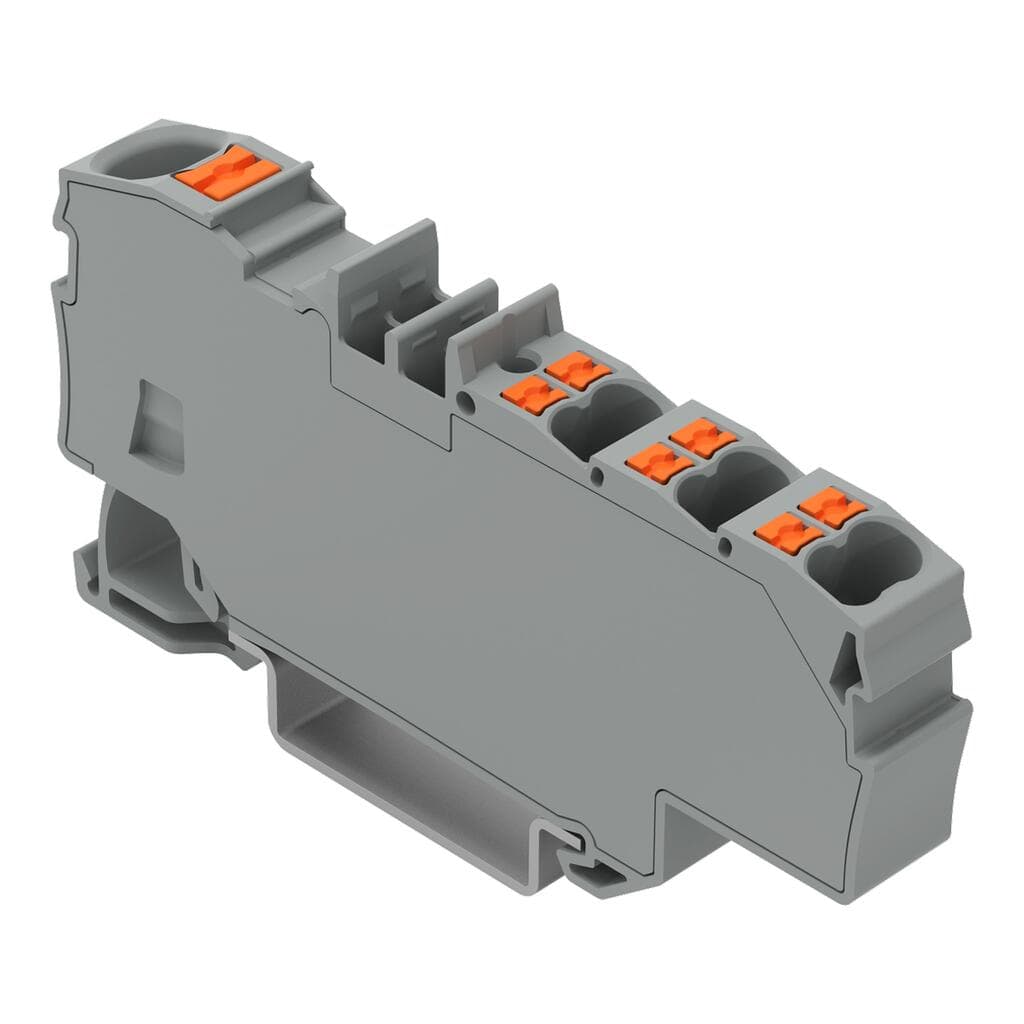

wago 2206-8031

Selling Points

  • 1High Amperage Rating: 57 A for reliable current handling.
  • 2Durable Construction: Made from Polyamide 6.6 for long-lasting performance.
  • 3Versatile Wire Range: Accommodates wire sizes from 20 to 8 AWG.
  • 4Easy Installation: Push-in connections simplify wiring setup.
  • 5Compact Design: Dimensions of 2.905 in H x 0.354 in W x 1.295 in D for space-efficient mounting.
Product Details
2206-8031
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
7
Total number of potentials
1
Number of levels
1
Number of jumper slots
2
Width
9?mm?/ 0.354?inches
Height
73.8?mm?/ 2.905?inches
Depth from upper-edge of DIN-rail
32.9?mm?/ 1.295?inches
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact plating
Tin
Fire load
0.37MJ
Actuator color
orange
Weight
16.3g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
ETIM 9.0
EC000897
ETIM 8.0
EC000897
ECCN
NO US CLASSIFICATION
PU (SPU)
12?pcs
Packaging type
Box
Country of origin
DE
GTIN
4066966185805
Customs tariff number
85369010000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60947-7-1
Rated voltage (III / 3)
800V
Rated impulse voltage (III / 3)
8kV
Rated current
41A
Current at conductor cross-section (max.) mm2
57A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Power loss, per pole (potential)
1.311W
Rated current I<sub>N</sub> for specified power loss
41A
Resistance value for specified, current-dependent power loss
0.001Ω
Connection type 1
Input
Connection technology
Push-in CAGE CLAMP?
Total number of connection points
1
Actuation type
Push-button
Connectable conductor materials
Copper
Nominal cross-section
6 mm2
Solid conductor
0.5 … 10?mm2?/ 20 … 8?AWG
Solid conductor; push-in termination
2.5 … 10?mm2?/ 14 … 8?AWG
Fine-stranded conductor
0.5 … 10?mm2?/ 20 … 8?AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 6?mm2?/ 20 … 10?AWG
Fine-stranded conductor; with ferrule; push-in termination
2.5 … 6?mm2?/ 16 … 10?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
13 … 15?mm?/ 0.51 … 0.59?inches
Wiring direction
Front-entry wiring
Connection type 2
Output
Connection technology 2
Push-in CAGE CLAMP?
Number of connection points 2
6
Nominal cross-section 2
1.5?mm2
Solid conductor 2
0.25 … 2.5?mm2?/ 22 … 14?AWG
Solid conductor; push-in termination 2
0.75 … 2.5?mm2?/ 18 … 14?AWG
Fine-stranded conductor 2
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with insulated ferrule 2
0.25 … 1.5?mm2?/ 22 … 16?AWG
Fine-stranded conductor; with ferrule; push-in termination; 2
0.75 … 1.5?mm2?/ 18 … 16?AWG
Strip length 2
9 … 11?mm?/ 0.35 … 0.43?inches
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed
