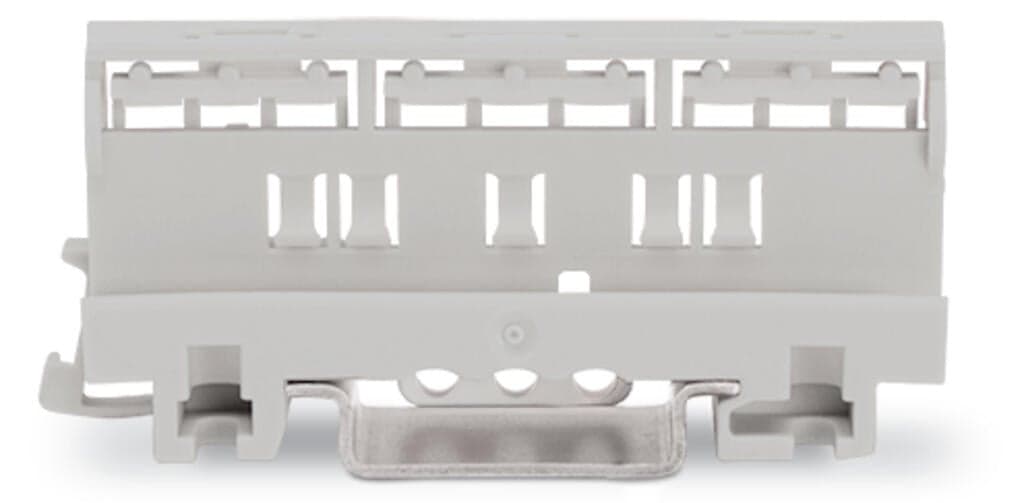

Product Model
221-501
Selling Points
- 1Made from high-quality polyamide (PA66) for long-lasting performance.
- 2Compatible with both DIN-35 rail and screw mounting options.
- 3Designed for Ex applications, ensuring safety in hazardous environments.
- 4Meets RoHS standards, ensuring environmental responsibility.
- 5Easy to install and use with WAGO's 221 Series lever-nuts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 17.5?mm?/ 0.689?inches | Height | 69.9 mm / 2.752 inches |
Depth from upper-edge of DIN-rail | 25.5 mm / 1.004 inches | Depth | 32 mm / 1.26 inches |
Mounting type | DIN-35 rail | Suitable | for 2-, 3- and 5-conductor 221?Series Ex Splicing Connectors (4?mm2) |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.292MJ |
Weight | 9.7g | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(10)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4055143753449 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
