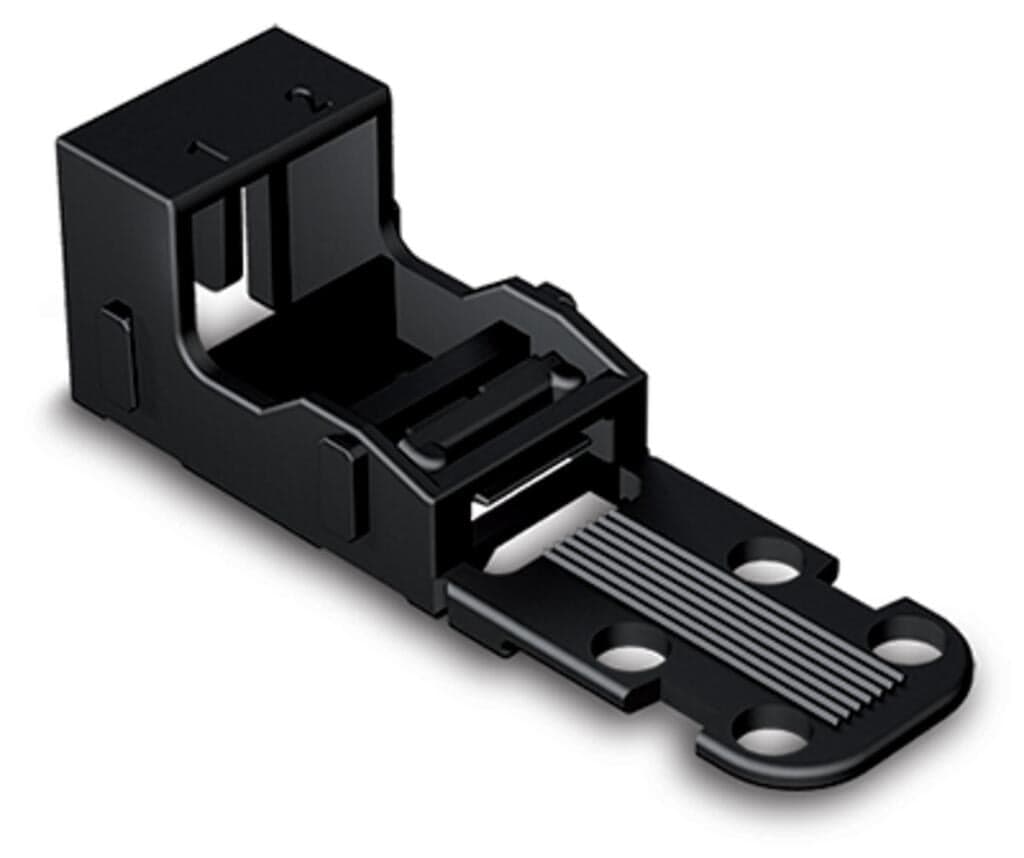

Product Model
221-502/000-004
Selling Points
- 1Universal Compatibility: Compatible with WAGO 221 series 2-conductor terminal blocks.
- 2Screw Mounting: Easy screw mounting for secure installation.
- 3Black Color: Durable black finish for professional use.
- 4RoHS Compliant: Meets RoHS compliance standards for environmental safety.
- 5High-Quality Insulation: Made from high-quality polyamide (PA66) insulation material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18.1?mm?/ 0.713?inches | Height from the surface | 16.9 mm / 0.665 inches |
Depth | 52.8?mm?/ 2.079?inches | Mounting type | Screw mount |
Suitable | for 2-wire connectors (4 mm2) | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.082MJ | Weight | 2.7g |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143595865 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
