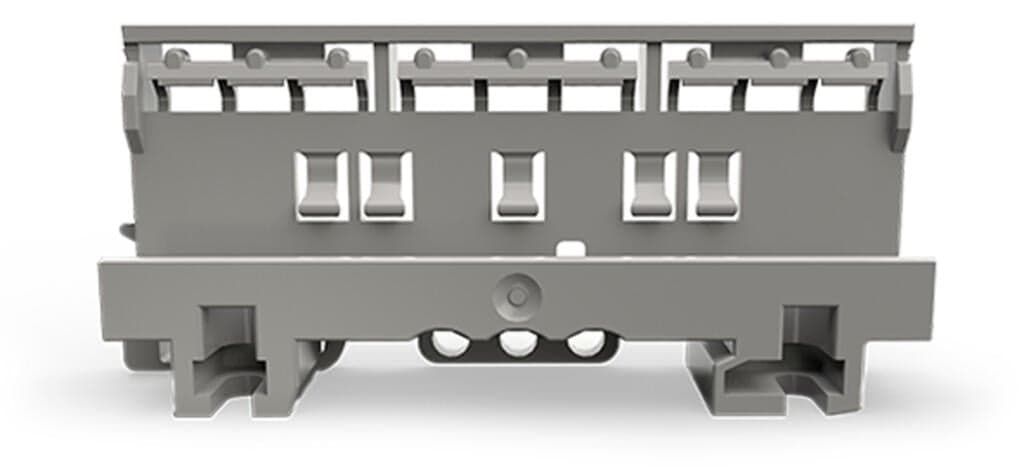

Product Model
221-511
Selling Points
- 1Designed for Ex applications with tool-free lever technology.
- 2Compatible with DIN rail and screw mounting options.
- 3Suitable for 6mm² connections.
- 4Available in a light gray color.
- 5Ideal for mounting WAGO 221 and 222 Series splicing connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 19.15 mm / 0.754 inches | Height | 83.5 mm / 3.287 inches |
Depth from upper-edge of DIN-rail | 28.3 mm / 1.114 inches | Depth | 34.8 mm / 1.37 inches |
Mounting type | DIN-35 rail | Suitable | for 2-, 3- and 5-conductor 221?Series Ex Splicing Connectors (6?mm2) |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.362MJ |
Weight | 12.1g | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(10)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4055143852135 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
