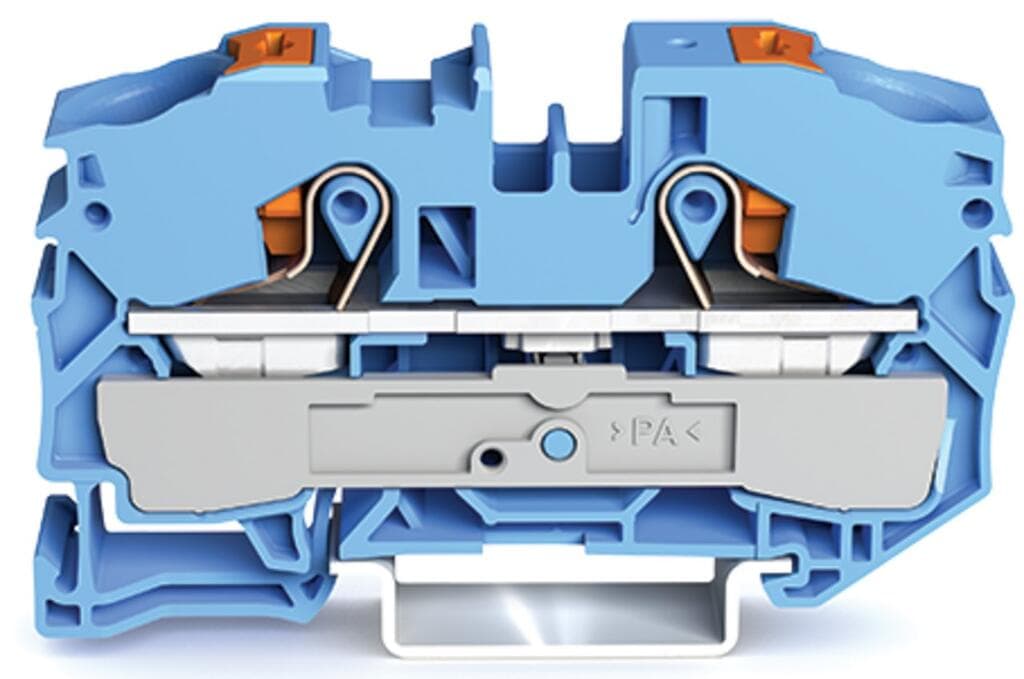

wago 2216-1204

Selling Points

  • 130% smaller than standard terminal blocks.
  • 2Secure and reliable connection method.
  • 3Fits 35mm DIN Rails for easy installation.
  • 4Suitable for various electrical and automation systems.
  • 5Supports up to 800V with 2-conductor configuration.
Product Details
2216-1204
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
2
Total number of potentials
1
Number of levels
1
Number of jumper slots
2
Width
12?mm?/ 0.472?inches
Height
69.8?mm?/ 2.748?inches
Depth from upper-edge of DIN-rail
37.1?mm?/ 1.461?inches
Depth
43.7 mm / 1.72 inches
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
blue
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.492MJ
Actuator color
orange
Weight
23.7g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
eCl@ss 10.0
27-14-11-20
eCl@ss 9.0
27-14-11-20
ETIM 9.0
EC000897
ETIM 8.0
EC000897
ECCN
NO US CLASSIFICATION
PU (SPU)
20?pcs
Packaging type
box
Country of origin
DE
GTIN
4055143732734
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
ATEX: PTB 18 ATEX 1009 U / IECEx: PTB 18.0016U (Ex eb IIC Gb)
Rated voltage (III / 3)
800V
Rated impulse voltage (III / 3)
8kV
Rated current
76A
Current at conductor cross-section (max.) mm2
90A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Rated current (note)
15 mm high DIN-35 rails shall be used for a current load higher than 76 A!
Approvals per
CSA 22.2 No 158
Rated voltage UL (Use Group B)
600V
Rated current UL (Use Group B)
85A
Rated voltage UL (Use Group C)
600V
Rated current UL (Use Group C)
85A
Rated voltage CSA (Use Group B)
600V
Rated current CSA (Use Group B)
85A
Rated voltage CSA (Use Group C)
600V
Rated current CSA (Use Group C)
85A
Reference hazardous areas
See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Rated voltage EN (Ex e II)
550V
Rated current (Ex e II)
76A
Rated current (Ex e II) with jumper
65A
Power loss, per pole (potential)
2.426W
Rated current I<sub>N</sub> for specified power loss
76A
Resistance value for specified, current-dependent power loss
Connection technology
Push-in CAGE CLAMP?
Actuation type
Push-button
Connectable conductor materials
Copper
Nominal cross-section
16 mm2
Solid conductor
0.5 … 16?mm2?/ 20 … 6?AWG
Solid conductor; push-in termination
2.5 … 16?mm2?/ 14 … 6?AWG
Fine-stranded conductor
0.5 … 25?mm2?/ 20 … 4?AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 16?mm2?/ 20 … 6?AWG
Fine-stranded conductor; with ferrule; push-in termination
6 … 16?mm2?/ 10 … 6?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC.
Strip length
18 … 20?mm?/ 0.71 … 0.79?inches
Wiring direction
Front-entry wiring
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
