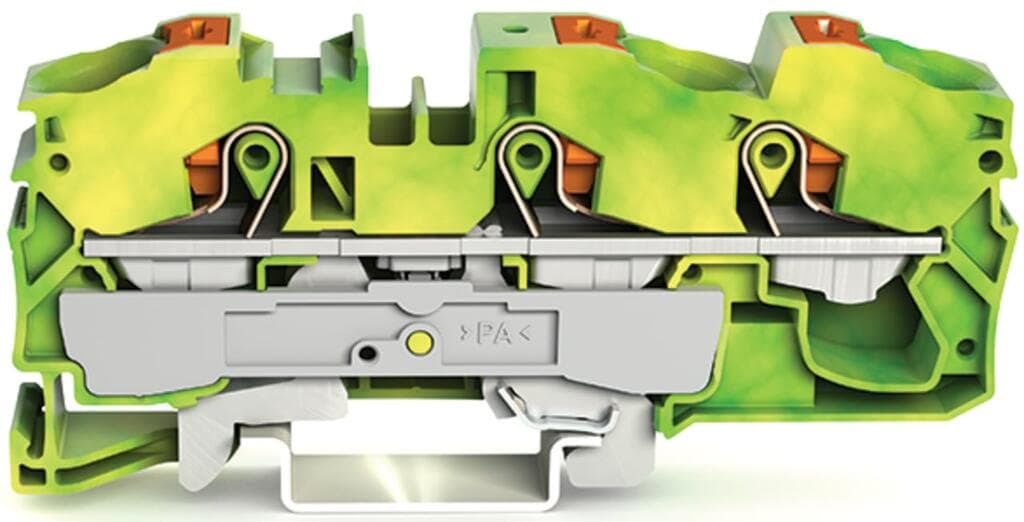

Product Model
2216-1307
Selling Points
- 1ATEX Certified: Designed for hazardous areas with vapors and gases.
- 2DIN Rail Mounting: Fits 35 x 15 mm and 35 x 7.5 mm DIN rails.
- 3Push-in Cage Clamp: Easy connection of solid, stranded, and fine-stranded conductors.
- 4Test Port Included: Facilitates testing and verification.
- 5Green/Yellow Color: Clearly marked for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 12?mm?/ 0.472?inches | Height | 91.8?mm?/ 3.622?inches |
Depth from upper-edge of DIN-rail | 37.1?mm?/ 1.461?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.528MJ | Actuator color | orange |
Weight | 48g | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143732802 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-2 |
Rated current (note) | 15 mm high DIN-35 rails shall be used for a current load higher than 76 A! | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 16 mm2 |
Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG | Solid conductor; push-in termination | 2.5 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 0.5 … 25?mm2?/ 20 … 4?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 16?mm2?/ 20 … 6?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 6 … 16?mm2?/ 10 … 6?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. |
Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
