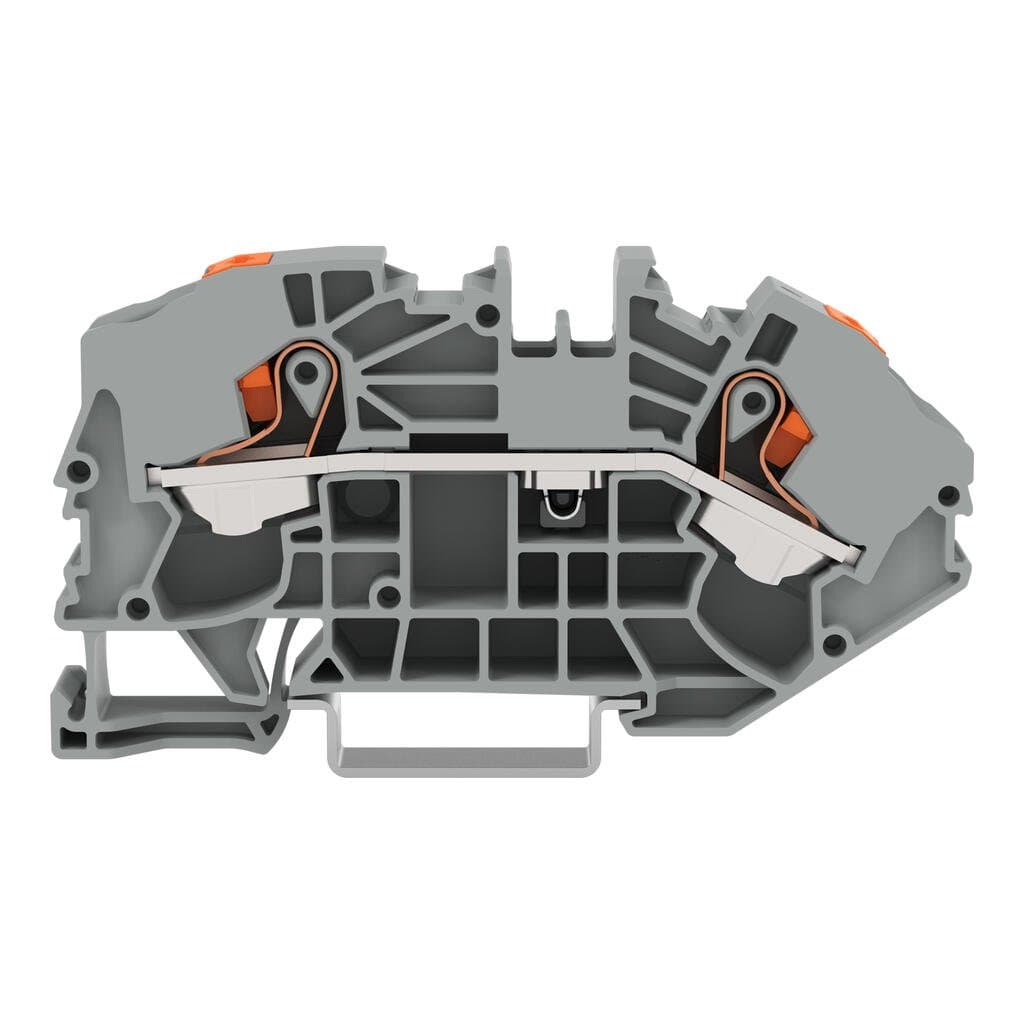

Product Model
2216-7601
Selling Points
- 1Push-button actuation for easy connection and disconnection.
- 2Front-entry wiring for convenient access to terminals.
- 316 mm² nominal cross-section supports high current ratings.
- 4DIN-35 rail mounting ensures secure and compact installation.
- 5Gray color with side and center marking for clear identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 12 mm / 0.472 inches | Height | 85.7 mm / 3.374 inches |
Depth from upper-edge of DIN-rail | 40.8 mm / 1.606 inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.501MJ | Weight | 28.2g |
Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20 pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966470734 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 76A | Current at conductor cross-section (max.) mm2 | 90A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 2.426W |
Rated current I<sub>N</sub> for specified power loss | 76A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 16 mm2 |
Solid conductor | 0.5 … 16 mm2 / 20 … 6 AWG | Solid conductor; push-in termination | 6 … 16 mm2 / 14 … 6 AWG |
Fine-stranded conductor | 0.5 … 25 mm2 / 20 … 4 AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 16 mm2 / 20 … 6 AWG |
Fine-stranded conductor; with ferrule; push-in termination | 6 … 16 mm2 / 10 … 6 AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. |
Strip length | 18 … 20 mm / 0.71 … 0.79 inches | Wiring direction | Front-entry wiring |
