Product Model
221-683
Selling Points

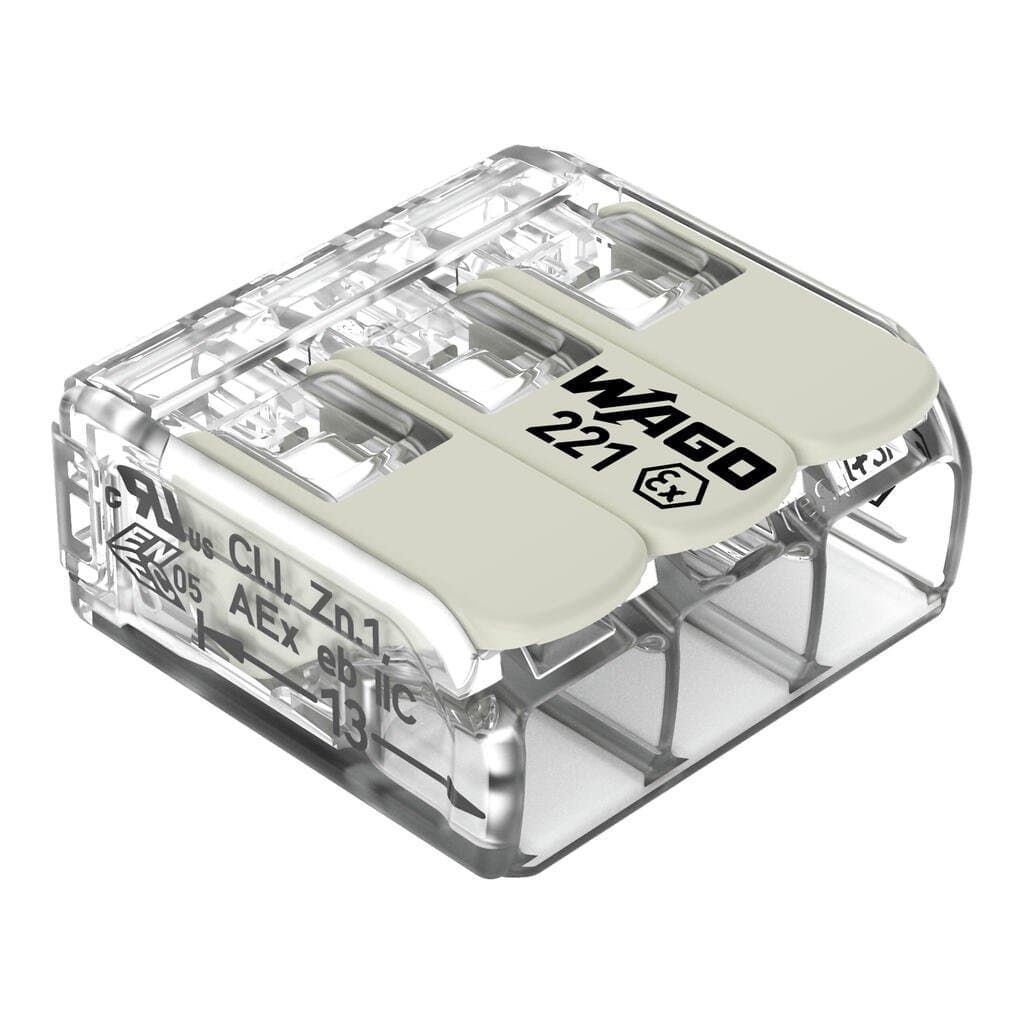

- 1The 221-683 connector is designed for ease of use with a transparent housing and light gray lever.
- 2Connects solid, stranded, and fine-stranded conductors from 0.5mm² to 6mm² or #20AWG to #10AWG.
- 3Meets Ex e II ratings with a maximum rated current of 37A and voltage of 440V.
- 4Simple to install with lever-actuated technology, requiring no tools.
- 5Constructed from polycarbonate (PC) with a flammability class of V2 and fire load of 0.097MJ.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Safety information | The permissible operating voltage of the connector with carrier (440?V or 275?V) depends on the mounting type. |
Safety information 2 | Only approved in conjunction with a mounting carrier (221-511). Other carriers are possible, see certificate/file.The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN?60079-0, Section 1 or EN?60079-31.When installing the connectors in an enclosure of protection type “eb” (increased safety) per EN?60079-7, the clearances and creepage distances of Table 2 for this standard must be observed. See point 1 for the use of accessories. The connectors can be used both in Group II and Group I, as the standard requirements are identical in this case.The use of these components requires a new assessment by a notified certification agency. | Clamping units | 3 |
Total number of potentials | 1 | Width | 22.9?mm?/ 0.902?inches |
Height | 10.1?mm?/ 0.398?inches | Depth | 21.1?mm?/ 0.831?inches |
Note (material data) | Information on material specifications can be found here | Color | transparent |
Material group | IIIa | Insulation material (main housing) | Polycarbonate (PC) |
Flammability class per UL94 | V2 | Fire load | 0.097MJ |
Actuator color | light gray | Weight | 4.3g |
Ambient temperature (storage) | -40 … +60 °C | Continuous operating temperature | -55 … +105?°C |
ETIM 9.0 | EC000446 | ETIM 8.0 | EC000446 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 300?(30)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4055143860574 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Approvals per | UL 60079 |
Rated voltage UL (Use Group C) | 440V | Rated current UL (Use Group C) | 30A |
Ratings per | ATEX: PTB 19 ATEX 1001 U / IECEx: PTB 19.001 1U (Ex eb IIC Gb) | Rated voltage EN (Ex e II) | 440V |
Rated current (Ex e II) | 37A | Connection technology | CAGE CLAMP? |
Actuation type | Lever | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 / 10 AWG | Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG |
Stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG |
Strip length | 12 … 14?mm?/ 0.47 … 0.55?inches | Wiring direction | Side-entry wiring |
