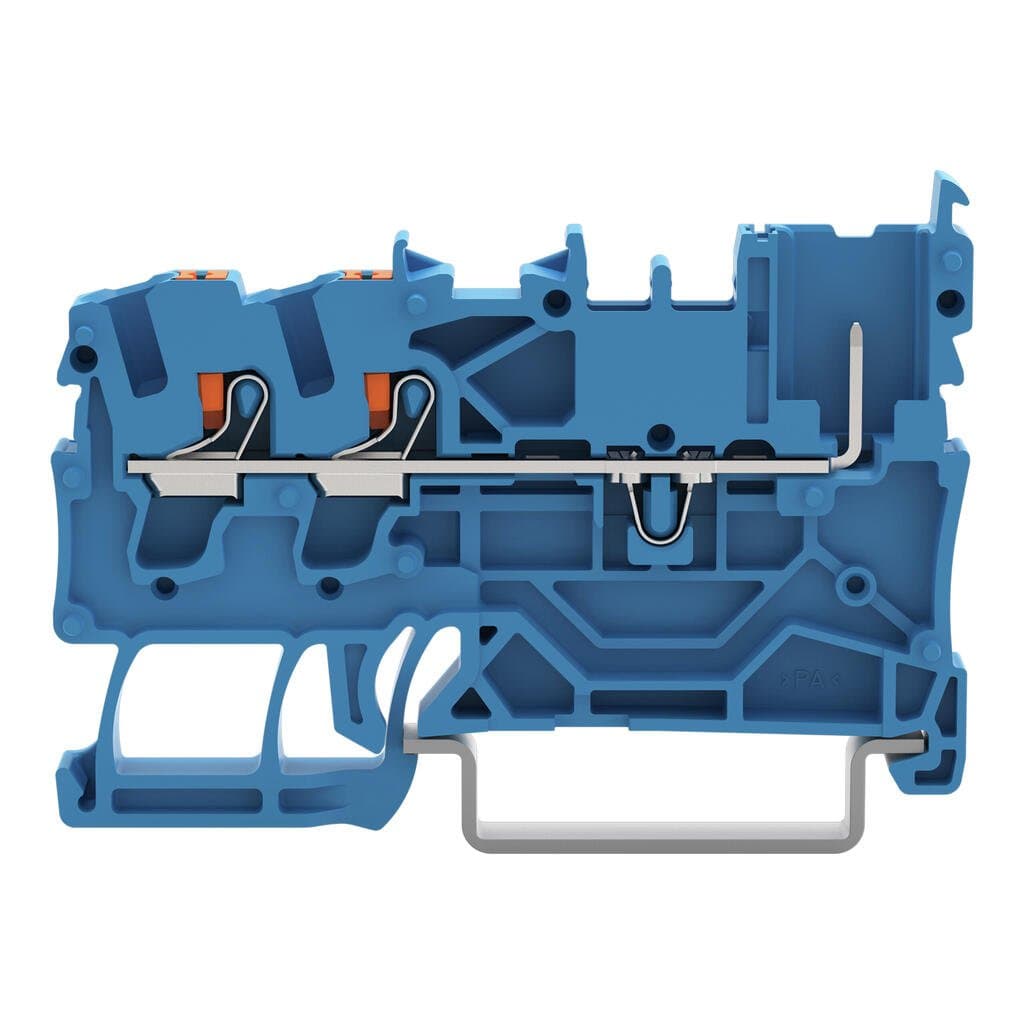

Product Model
2222-1304/999-953
Selling Points
- 1Mounts easily on DIN-rail 35 x 15 and 35 x 7.5.
- 2Features a push-button for convenient conductor insertion and removal.
- 3Supports up to 20 amperes of current.
- 4Designed for Ex nA applications, ensuring safety in hazardous environments.
- 5Made with polyamide (PA66) for excellent insulation and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Female plug slots | 1 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5.2?mm?/ 0.205?inches | Height | 59.2?mm?/ 2.331?inches |
Depth from upper-edge of DIN-rail | 36.4?mm?/ 1.433?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.16MJ | Weight | 6.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966204209 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated current | 20A | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 20A |
Rated voltage EN (Ex e II) | 630V | Power loss, per pole (potential) | 0.532W |
Rated current I<sub>N</sub> for specified power loss | 20A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
