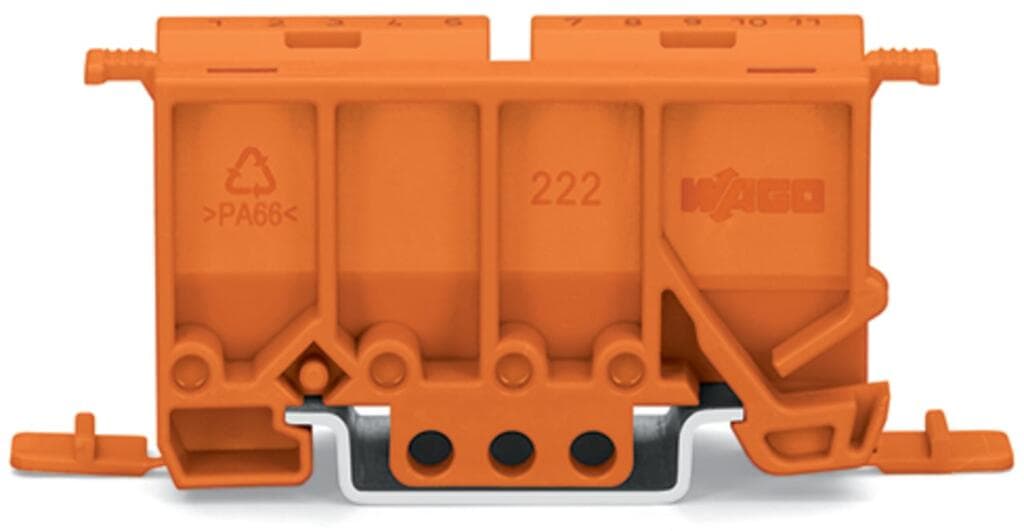

Product Model
222-500
Selling Points
- 1Compact design for easy installation on DIN rails.
- 2Suitable for 2-, 3-, and 5-wire compact splicing connectors.
- 3Orange color for visibility and identification.
- 4Fire load of 0.326 MJ for safety compliance.
- 5Available in packs of 50 units for bulk purchases.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 22?mm?/ 0.866?inches | Height | 65.6 mm / 2.583 inches |
Depth from upper-edge of DIN-rail | 26 mm / 1.024 inches | Depth | 32 mm / 1.26 inches |
Mounting type | DIN-35 rail | Suitable | for 2-, 3- and 5-conductor splicing connectors (222 Series) |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.336MJ |
Weight | 11.2g | Product Group | 7 (Push Wire Conn.) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4045454714765 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
