Product Model

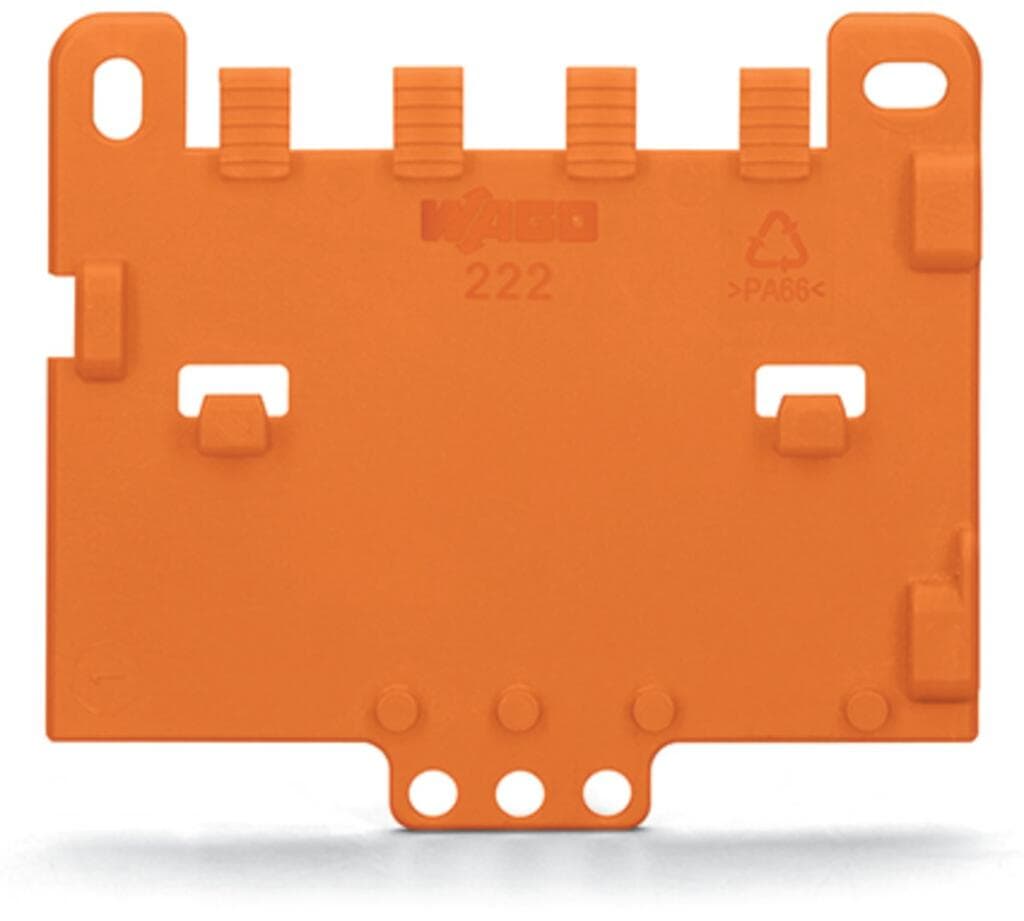

222-505
Selling Points
- 1Snap-on Fixing: Easy installation with snap-on mechanism for secure connection.
- 2High Fire Load: Withstands high fire loads of 0.162 MJ, ensuring reliability in harsh environments.
- 3Durable Construction: Built with durable materials for long-lasting performance.
- 4Versatile Compatibility: Compatible with WAGO 221 and 222 series mounting carriers.
- 5Compact Dimensions: Measuring 4 x 52 x 67.5 mm, perfect for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 4?mm?/ 0.157?inches | Height | 67 mm / 2.638 inches |
Depth from upper-edge of DIN-rail | 52 mm / 2.047 inches | Depth | 58 mm / 2.283 inches |
Suitable | for mounting carriers (221 and 222 Series) | Note (material data) | Information on material specifications can be found here |
Fire load | 0.168MJ | Weight | 5.6g |
Product Group | 7 (Push Wire Conn.) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(10)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454714789 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
