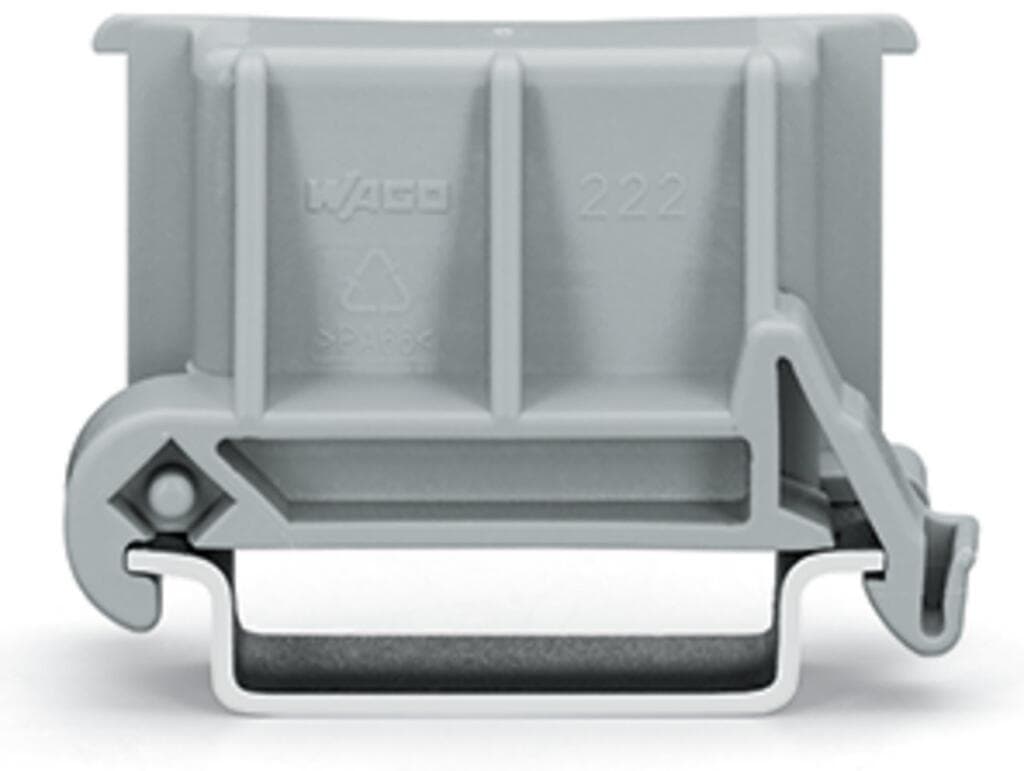

Product Model
222-510
Selling Points
- 1Snap fit assembly to mounting carrier and 35mm DIN rail.
- 2Supports up to 20 A and 600 V.
- 3Made from polyamide (PA66) for robust performance.
- 4Angled design for horizontal mounting orientation.
- 5Compatible with WAGO COMPACT 222 Series Splicing Connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18.5?mm?/ 0.728?inches | Height | 41.8 mm / 1.645 inches |
Depth from upper-edge of DIN-rail | 21.5 mm / 0.846 inches | Depth | 26.3 mm / 1.035 inches |
Mounting type | DIN-35 rail | Suitable | in combination with a mounting carrier (221?500 or 222?500) |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.117MJ |
Weight | 3.9g | Product Group | 7 (Push Wire Conn.) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4045454714802 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
