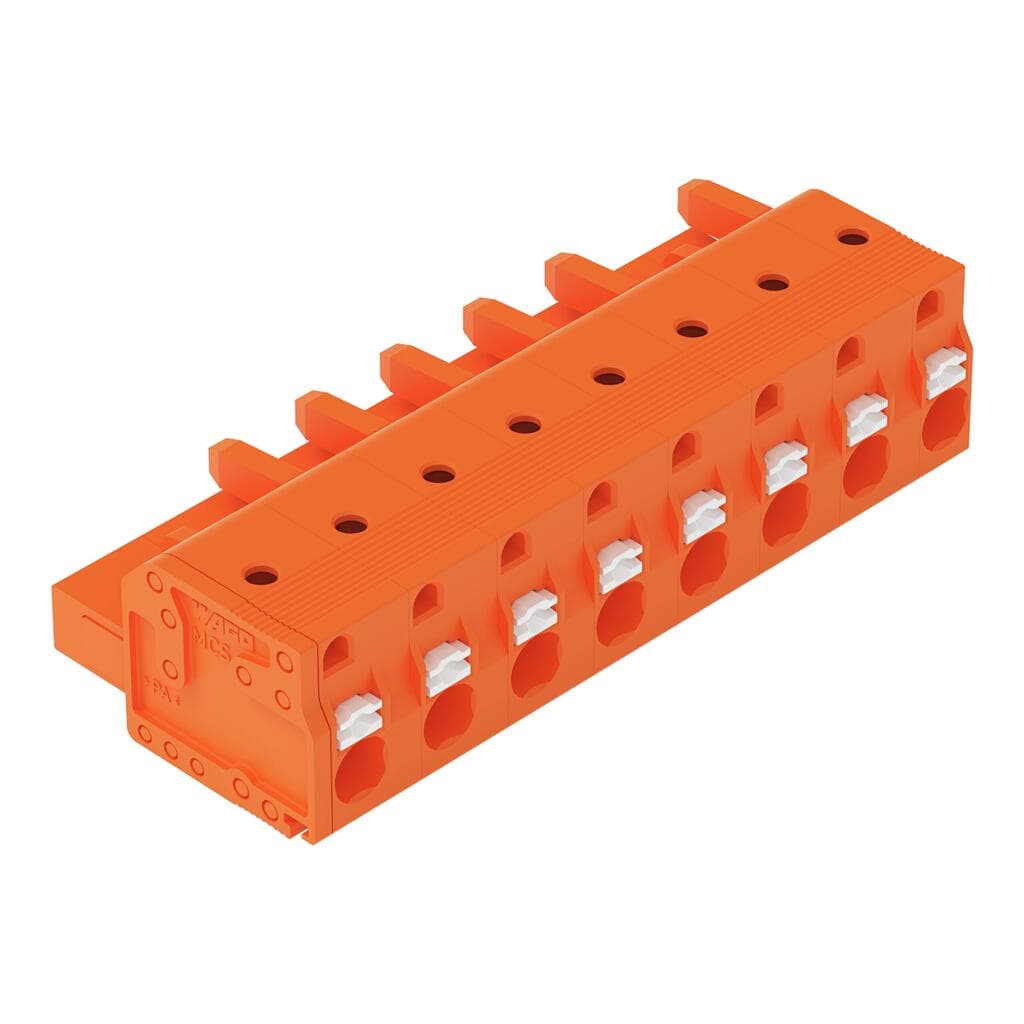

wago 2231-708/026-000

Selling Points

  • 1High-Quality Construction: Built with durable chrome-nickel spring steel and copper alloy contacts for long-lasting performance.
  • 2Easy Installation: Features push-in CAGE CLAMP technology for quick and tool-free termination of solid and ferruled conductors.
  • 3Universal Compatibility: Suitable for all conductor types with a universal connection system, ensuring seamless integration.
  • 4Safety Certifications: Meets UL 1059 and EN 61984 standards, ensuring compliance with industry safety regulations.
  • 5Versatile Design: Includes integrated test ports for parallel testing and variable coding options for customization.
Product Details
2231-708/026-000
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Safety information
TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:
Gold-plated or partially gold-plated contact surfaces
Clamping units
8
Total number of potentials
8
Number of connection types
1
Number of levels
1
Pin spacing
7.62?mm?/ 0.3?inches
Width
59.84?mm?/ 2.356?inches
Height
15?mm?/ 0.591?inches
Depth
25.6?mm?/ 1.008?inches
Variable coding
Yes
Anti-rotation protection
Yes
Contact type (pluggable connector)
Female connector/socket
Connector (connection type)
for conductor
Mismating protection
No
Plugging without loss of pin spacing
No
Locking of plug-in connection
none
Note (material data)
Information on material specifications can be found here
Color
orange
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Copper alloy
Contact plating
Tin
Fire load
0.346MJ
Weight
15.4g
Limit temperature range
-60 … +100?°C
Processing temperature
-35 … +60?°C
Product Group
3 (Multi Conn. System)
eCl@ss 10.0
27-44-03-09
eCl@ss 9.0
27-44-03-09
ETIM 9.0
EC002638
ETIM 8.0
EC002638
ECCN
NO US CLASSIFICATION
PU (SPU)
25?pcs
Packaging type
box
Country of origin
PL
GTIN
4045454732387
Customs tariff number
8536694040
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
500V
Rated impulse voltage (III / 3)
6kV
Rated voltage (III/2)
630V
Rated surge voltage (III/2)
6kV
Nominal voltage (II/2)
1000V
Rated surge voltage (II/2)
6kV
Rated current
16A
Legend (ratings)
(III / 2) ? Overvoltage category III / Pollution degree 2
Approvals per
CSA
Rated voltage UL (Use Group B)
300V
Rated current UL (Use Group B)
15A
Rated voltage UL (Use Group C)
300V
Rated current UL (Use Group C)
15A
Rated voltage UL (Use Group D)
300V
Rated current UL (Use Group D)
10A
Rated voltage (UL 1977)
600V
Rated current UL 1977
15A
Rated voltage CSA (Use Group B)
300V
Rated current CSA (Use Group B)
15A
Rated voltage CSA (Use Group C)
300V
Rated current CSA (Use Group C)
15A
Rated voltage CSA (Use Group D)
300V
Rated current CSA (Use Group D)
10A
Connection technology
Push-in CAGE CLAMP?
Actuation type
Push-button
Actuation direction 1
Operation parallel to conductor entry
Solid conductor
0.2 … 2.5?mm2?/ 24 … 12?AWG
Fine-stranded conductor
0.2 … 2.5?mm2?/ 24 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5?mm2
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5?mm2
Strip length
10 … 11?mm?/ 0.39 … 0.43?inches
Number of poles
8
Conductor entry direction to mating direction
0°
