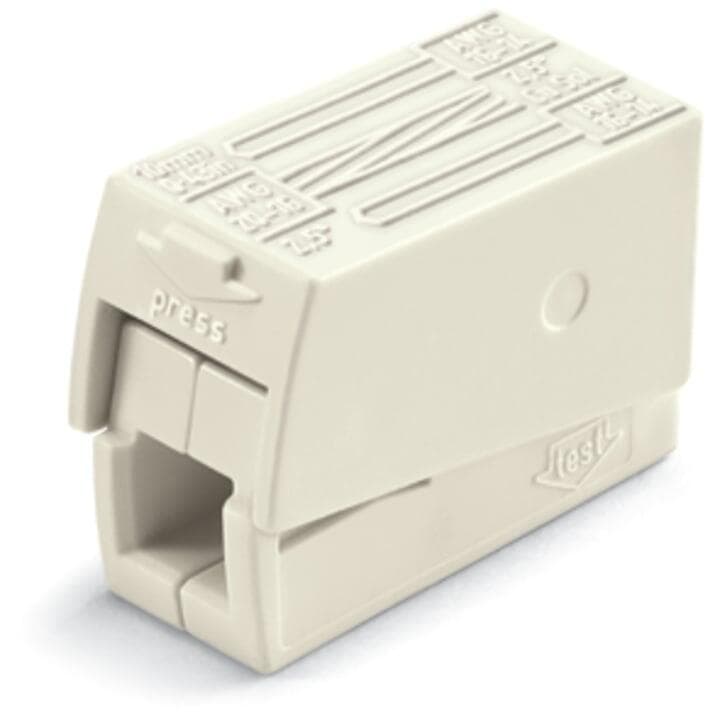

Product Model
224-112
Selling Points
- 1Built with durable copper material for long-lasting performance.
- 2Push-in actuation type for quick and secure connections.
- 3Suitable for both solid and stranded conductors, including aluminum with "Alu-Plus" contact paste.
- 4Meets EN 60998 and UL 486C standards for safety and reliability.
- 5Dimensions of 20.40 mm x 8 mm x 15.50 mm for efficient space utilization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | in grounded power lines | Clamping units | 3 |
Total number of potentials | 1 | Width | 9.5?mm?/ 0.374?inches |
Height | 15.5?mm?/ 0.61?inches | Depth | 20.5?mm?/ 0.807?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Fire load | 0.047MJ | Weight | 2.1g |
Ambient temperature (operation) | +60 °C | Continuous operating temperature | 105?°C |
Product Group | 7 (Push Wire Conn.) | eCl@ss 10.0 | 27-14-11-03 |
eCl@ss 9.0 | 27-14-11-03 | ETIM 9.0 | EC000446 |
ETIM 8.0 | EC000447 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1000?(100)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4044918583596 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | EN 60664 | Nominal voltage (II/2) | 400V |
Rated surge voltage (II/2) | 4kV | Rated current | 24A |
Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 | Connection type 1 | Installation side |
Connection technology | PUSH WIRE? | Total number of connection points | 2 |
Actuation type | Push-in | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Copper/Copper Connection Only | Solid conductor | 1 … 2.5?mm2?/ 16 … 14?AWG |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Side-entry wiring |
Connection type 2 | Lighting side | Connection technology 2 | CAGE CLAMP? |
Number of connection points 2 | 1 | Solid conductor 2 | 0.5 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor 2 | 0.5 … 2.5?mm2?/ 20 … 16?AWG |
Specifications may be subject to change without notice
