wagoWire Splicing Connectors
Product Model

224-114

Manufacturer

wago

Category

Wire Splicing Connectors

Product ID

40582

In Stock
Last updated: 2025/4/19
View Specifications

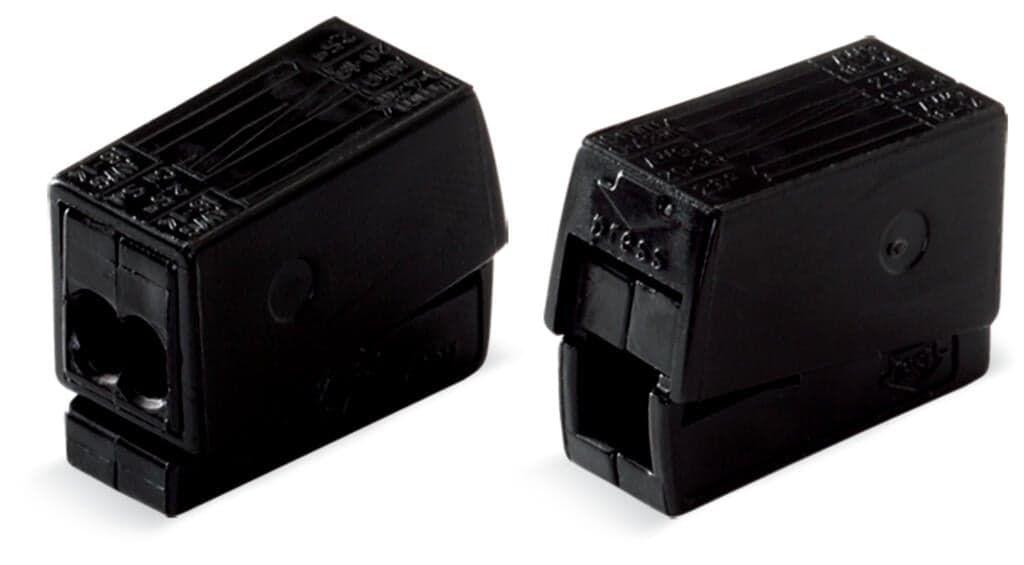

wago 224-114

Selling Points

  • 1Increased operating temperature up to 120°C.
  • 2Easy push-in termination for quick connections.
  • 3Suitable for wire sizes 1mm² to 2.5mm² or #16AWG to #14AWG.
  • 4RoHS compliant and certified for household applications.
  • 5Compact design with a black finish for durability.
Product Details
224-114
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Safety information
in grounded power lines
Clamping units
3
Total number of potentials
1
Width
9.5?mm?/ 0.374?inches
Height
15.5?mm?/ 0.61?inches
Depth
20.5?mm?/ 0.807?inches
Note (material data)
Information on material specifications can be found here
Color
black
Fire load
0.051MJ
Weight
2.5g
Ambient temperature (operation)
+75 °C
Continuous operating temperature
120?°C
eCl@ss 10.0
27-14-11-03
eCl@ss 9.0
27-14-11-03
ETIM 9.0
EC000446
ETIM 8.0
EC000447
ECCN
NO US CLASSIFICATION
PU (SPU)
100?pcs
Packaging type
box
Country of origin
CH
GTIN
4044918583787
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
EN 60664
Nominal voltage (II/2)
400V
Rated surge voltage (II/2)
4kV
Rated current
24A
Legend (ratings)
(II / 2) ? Overvoltage category II / Pollution degree 2
Connection type 1
Installation side
Connection technology
PUSH WIRE?
Total number of connection points
2
Actuation type
Push-in
Connectable conductor materials
Copper
Connectable conductor materials (note)
Copper/Copper Connection Only
Solid conductor
1 … 2.5?mm2?/ 16 … 14?AWG
Strip length
9 … 11?mm?/ 0.35 … 0.43?inches
Wiring direction
Side-entry wiring
Connection type 2
Lighting side
Connection technology 2
CAGE CLAMP?
Number of connection points 2
1
Solid conductor 2
0.5 … 2.5?mm2?/ 20 … 14?AWG
Fine-stranded conductor 2
0.5 … 2.5?mm2?/ 20 … 16?AWG

Specifications may be subject to change without notice
