Product Model

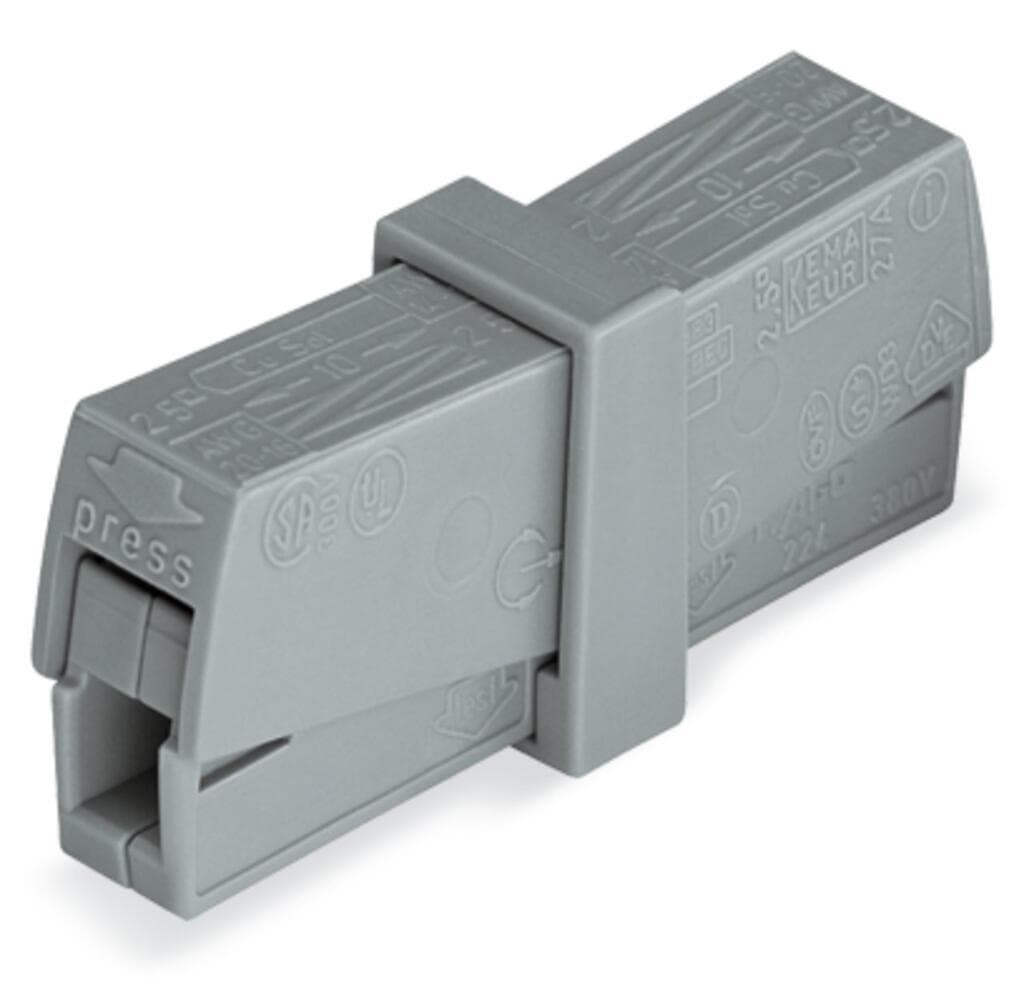

224-201
Selling Points
- 1The WAGO 224-201 features CAGE CLAMP spring connections that ensure secure and reliable wire termination.
- 2Suitable for wire sizes ranging from 0.5mm² to 2.5mm² (or #20AWG to #16AWG).
- 3Supports a rated current of 24A, making it suitable for various electrical applications.
- 4Prevents electrolytic corrosion between aluminum and copper conductors, providing long-term protection against corrosion.
- 5Simple push-in connection method with no need for tools, ensuring quick and efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | in grounded power lines | Clamping units | 2 |
Total number of potentials | 1 | Width | 8?mm?/ 0.315?inches |
Height | 15.5?mm?/ 0.61?inches | Depth | 42?mm?/ 1.654?inches |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.097MJ | Weight | 4.6g |
Ambient temperature (operation) | +60 °C | eCl@ss 10.0 | 27-14-11-03 |
eCl@ss 9.0 | 27-14-11-03 | ETIM 9.0 | EC000446 |
ETIM 8.0 | EC000447 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4044918818407 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | EN 60664 | Nominal voltage (II/2) | 400V |
Rated surge voltage (II/2) | 4kV | Rated current | 24A |
Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 | Connection technology | CAGE CLAMP? |
Actuation type | Push-in | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Copper/Copper Connection Only | Solid conductor | 0.5 … 2.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.5 … 2.5?mm2?/ 20 … 16?AWG | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
