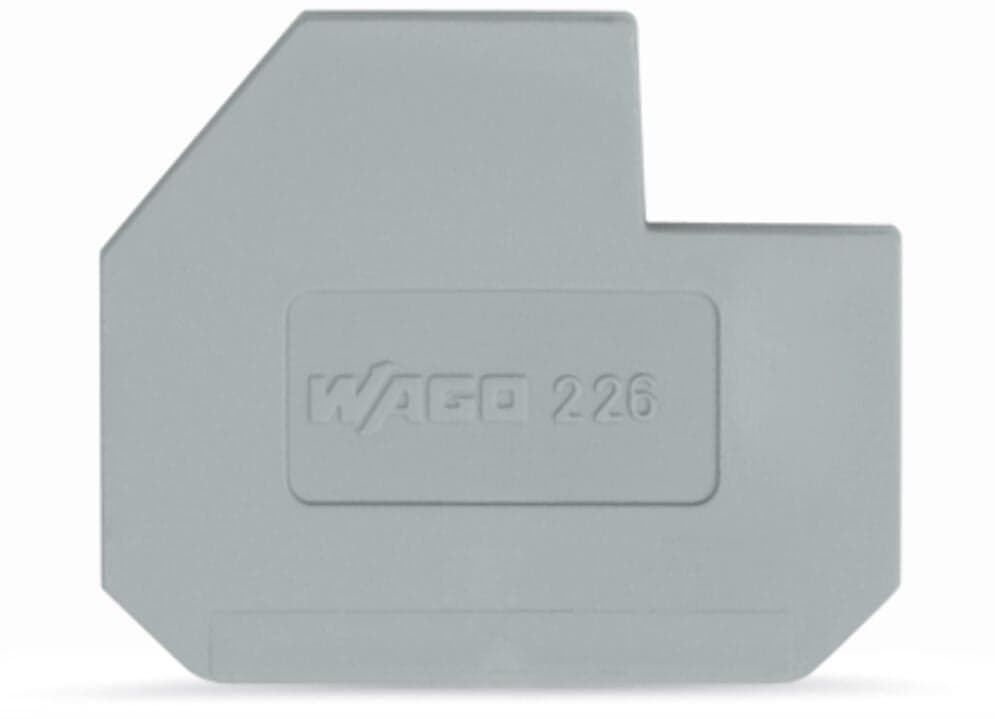

Product Model
226-120
Selling Points
- 1High-quality, precision-engineered connectors for reliable connections.
- 2Durable and resistant to environmental factors like moisture and vibration.
- 3Easy installation with minimal tools required, saving time and effort.
- 4Compatible with a wide range of industrial applications including automation and control systems.
- 5Ensures secure and consistent electrical connections, reducing downtime and improving overall system performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 22?mm?/ 0.866?inches |
Depth | 26?mm?/ 1.024?inches | Design | short |
Mounting type | snap-on type | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.092MJ | Weight | 0.9g |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332107150 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
