Product Model

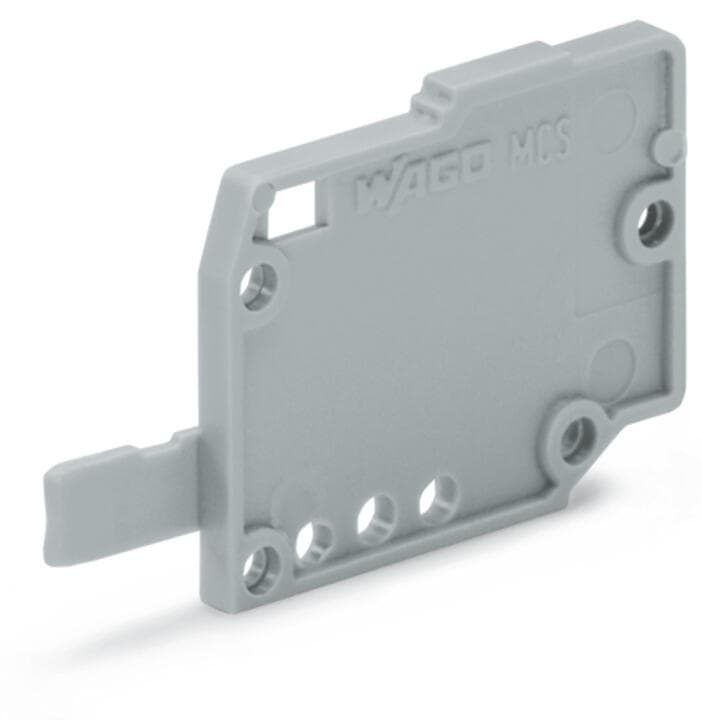

231-100
Selling Points
- 1Snap-on Mounting: Easy installation with snap-on mounting method.
- 2High Durability: 1.5 mm thick gray end plate for robust performance.
- 3Environmental Compliance: Meets RoHS compliance and has approvals from CSA and Lloyds Register.
- 4Versatile Packaging: Available in multiples of 100 per box for efficient inventory management.
- 5Affordable Pricing: Competitive pricing starting at €0.047 per unit in bulk quantities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.5?mm?/ 0.059?inches | Height | 14.3?mm?/ 0.563?inches |
Depth | 26.45?mm?/ 1.041?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.014MJ |
Weight | 0.3g | Processing temperature | -35 … +60?°C |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(100)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332117081 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
