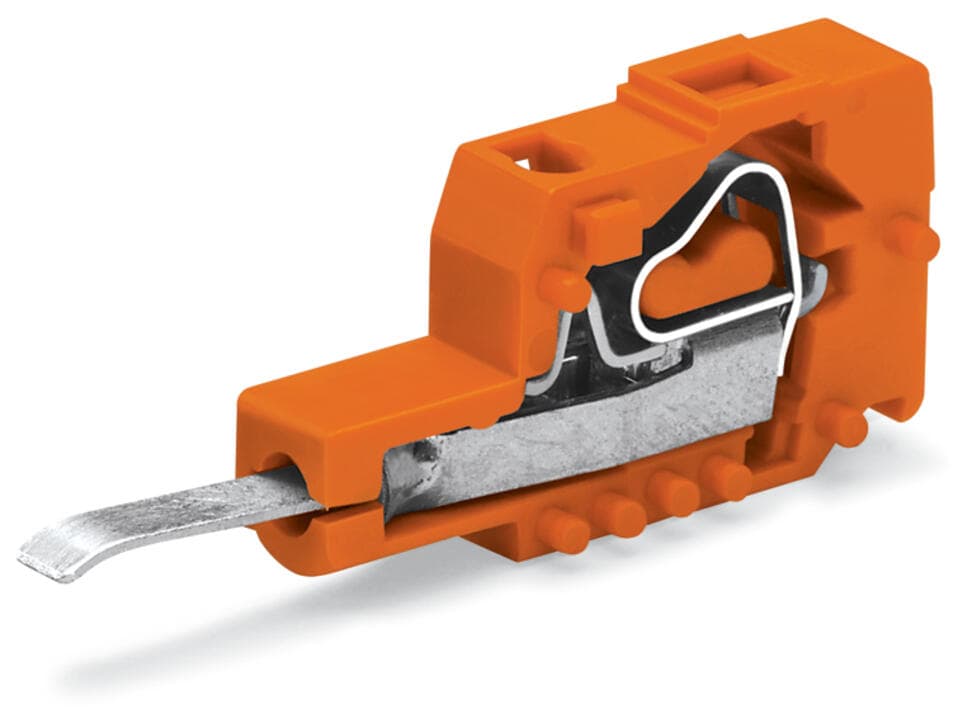

Product Model
231-128
Selling Points
- 1High-Quality Electrical Connector: Designed for reliable electrical connections in industrial automation.
- 2Compact Dimensions: 5.08mm pin spacing and 0.2 inches width for precise fitting.
- 3Compliant with IEC/EN 60664-1: Meets overvoltage category III and pollution degree 2 standards.
- 4Versatile Conductor Accommodation: Supports solid and fine-stranded conductors from 0.08 to 2.5mm² (28 to 12 AWG).
- 5Durable Construction: Made with polyamide insulation material for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Pin spacing | 5.08?mm?/ 0.2?inches |
Width | 5.08?mm?/ 0.2?inches | Height | 14.3?mm?/ 0.563?inches |
Depth | 36.45?mm?/ 1.435?inches | Use | Testing without connected conductor |
Test contact length | 10mm | Suitable | for 236 Series |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.024MJ | Weight | 1.9g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-48 |
eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454761622 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III/2) | 250V |
Rated surge voltage (III/2) | 2.5kV | Rated current | 0.5A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Connection technology | CAGE CLAMP? |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Specifications may be subject to change without notice
