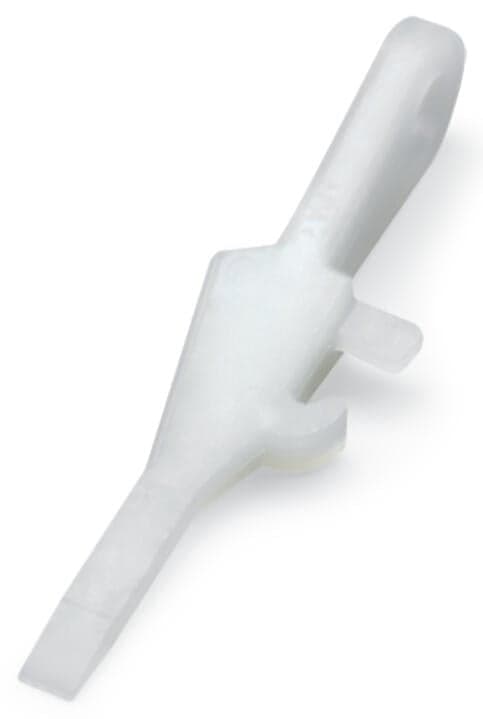

Product Model
231-159
Selling Points
- 1Natural Color Design: The tool features a natural color design for easy identification and use.
- 2CAGE CLAMP Compatibility: Compatible with male and female connectors using the CAGE CLAMP connection system.
- 3High-Quality Insulation: Made from glass fiber-reinforced polyamide (PA66 GF) for excellent insulation properties.
- 4UL94 HB Flammability: Meets UL94 HB flammability standards for safety in various environments.
- 5Versatile Spacing: Available in 5/7.62mm pin spacing, suitable for multiple connector series (231, 232, 721, 722, 723, 731, 732).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of spacings | 1-way | Depth | 50?mm?/ 1.97?inches |
Pin spacing | 5/7.62?mm | Suitable | for male and female connectors with CAGE CLAMP?connection |
Color | natural | Material group | I |
Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) | Flammability class per UL94 | HB |
Fire load | 0.038MJ | Weight | 1.4g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332117661 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
