Product Model

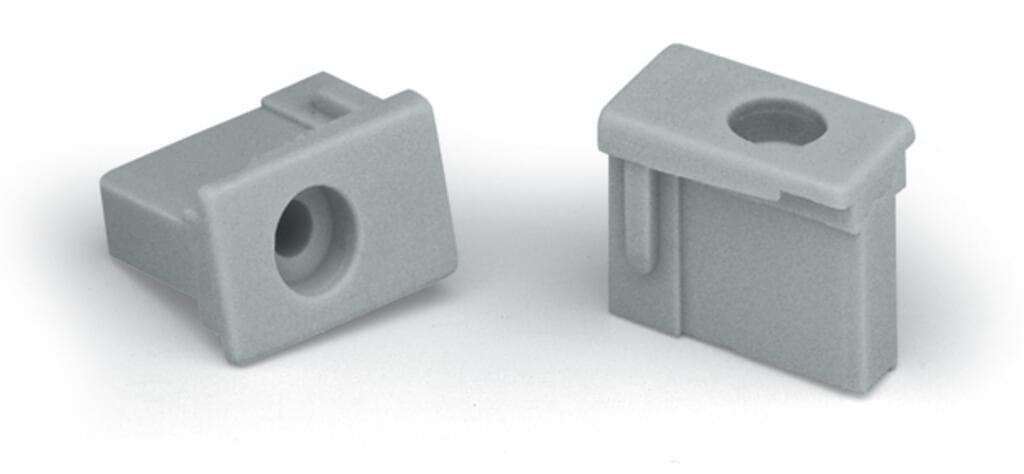

231-193
Selling Points
- 1Secure Male Connectors: The WAGO 231-193 locking device ensures secure connections by locking male connectors in place.
- 2Durable Construction: Made with high-quality materials, this locking device is durable and long-lasting.
- 3Easy Installation: Simple and straightforward installation process makes it easy to use in various applications.
- 4Versatile Compatibility: Compatible with multiple connector types, making it versatile for various projects.
- 5Cost-Effective Solution: Affordable pricing without compromising on quality, making it a cost-effective solution for your needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Panel mounting | Suitable | for angled THT male headers |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.012MJ |
Weight | 0.4g | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332117975 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
