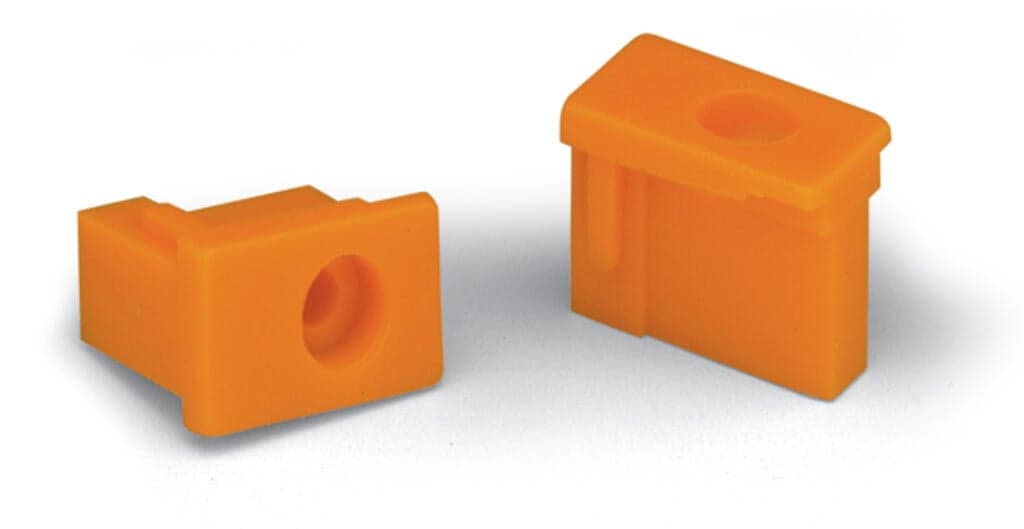

Product Model
231-393
Selling Points
- 1Secure and efficient connectivity solutions.
- 2Approved as independent equipment per EN 60998.
- 3Reliable and maintenance-free connections.
- 4Suitable for a wide range of applications, including household and industrial use.
- 5Compact design for easy installation and use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Panel mounting | Suitable | for angled THT male headers |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.012MJ |
Weight | 0.4g | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332119160 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
