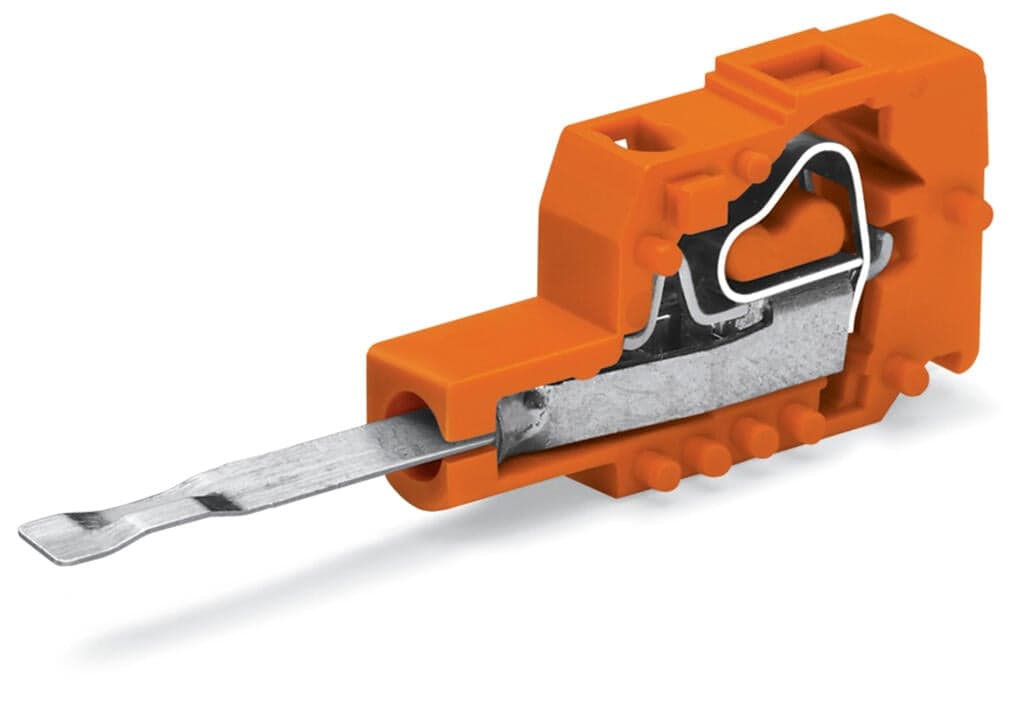

Product Model
231-455
Selling Points
- 1High-Quality Electrical Testing: Designed for precise electrical testing with a 5.08 mm pin spacing.
- 2Durable Contact Stud: Ensures reliable connections with a 2.50 mm² contact area.
- 3Compact Design: Perfect for various applications due to its compact dimensions.
- 4Orange Color Coding: Easy identification with an orange color, enhancing safety and efficiency.
- 5Versatile Usage: Suitable for multiple testing scenarios, including industrial automation and electronics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Pin spacing | 5.08?mm?/ 0.2?inches |
Width | 5.08?mm?/ 0.2?inches | Height | 14.3?mm?/ 0.563?inches |
Depth | 44.45?mm?/ 1.75?inches | Use | Testing wired terminal blocks with 0.75 …1.5 mm2 “f-st” or 0.5 mm2 “sol.” conductors |
Test contact length | 18mm | Suitable | for 736, 737, 738 Series |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.024MJ | Weight | 1.9g |
Limit temperature range | -60 … +105?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454761950 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III/2) | 250V | Rated surge voltage (III/2) | 2.5kV |
Rated current | 0.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Specifications may be subject to change without notice
