Product Model

231-456

Manufacturer

wago

Category

Pcb Interconnect

Product ID

49220

In Stock
Last updated: 2025/4/20
View Specifications

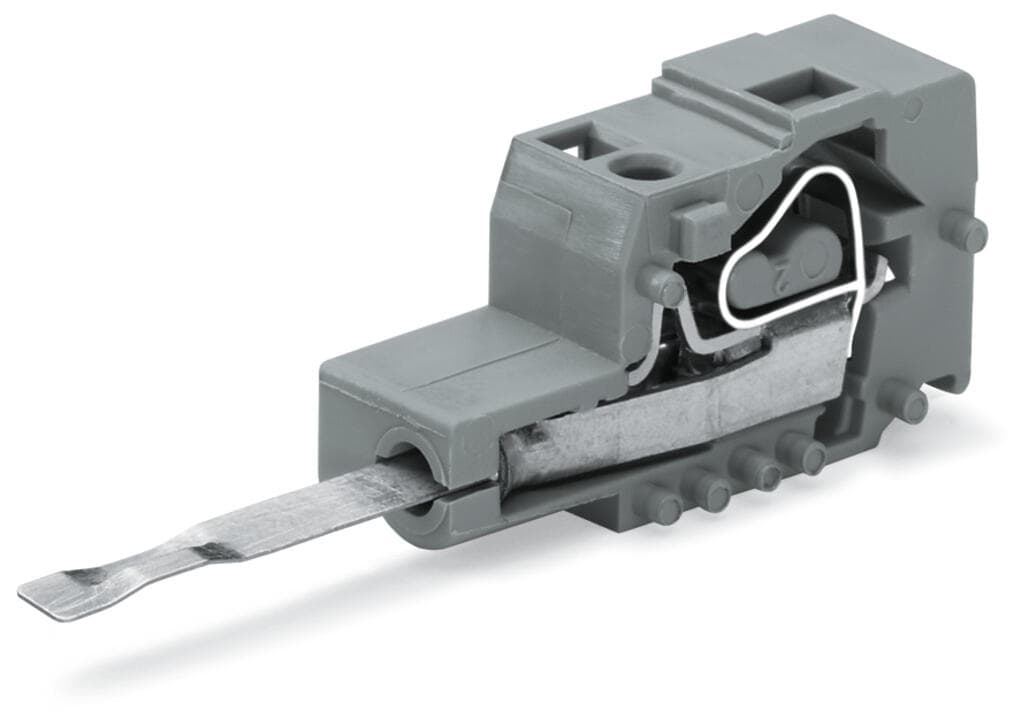

wago 231-456

Selling Points

  • 1Designed for 736, 737 Series terminal blocks.
  • 2Pin spacing of 7.5 mm / 0.295 inches.
  • 3Contact stud for reliable testing connections.
  • 4Made from gray polyamide (PA66) with electrolytic copper contacts.
  • 5Compliant with IEC/EN 60664-1 standards.
Product Details
231-456
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
1
Total number of potentials
1
Number of connection types
1
Pin spacing
7.5?mm?/ 0.295?inches
Width
7.5?mm?/ 0.295?inches
Height
14.3?mm?/ 0.563?inches
Depth
44.45?mm?/ 1.75?inches
Use
Testing wired terminal blocks with 0.75 …1.5 mm2 “f-st” or 0.5 mm2 “sol.” conductors
Test contact length
18mm
Suitable
for 736, 737 Series
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.125MJ
Weight
2.2g
Limit temperature range
-60 … +105?°C
Processing temperature
-35 … +60?°C
Product Group
3 (Multi Conn. System)
eCl@ss 10.0
27-14-11-48
eCl@ss 9.0
27-14-11-48
ETIM 9.0
EC002555
ETIM 8.0
EC002555
ECCN
NO US CLASSIFICATION
PU (SPU)
100?pcs
Packaging type
box
Country of origin
DE
Customs tariff number
85366990990
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III/2)
250V
Rated surge voltage (III/2)
2.5kV
Rated current
0.5A
Legend (ratings)
(III / 2) ? Overvoltage category III / Pollution degree 2
Connection technology
CAGE CLAMP?
Solid conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Strip length
12 … 13?mm?/ 0.47 … 0.51?inches

Specifications may be subject to change without notice
