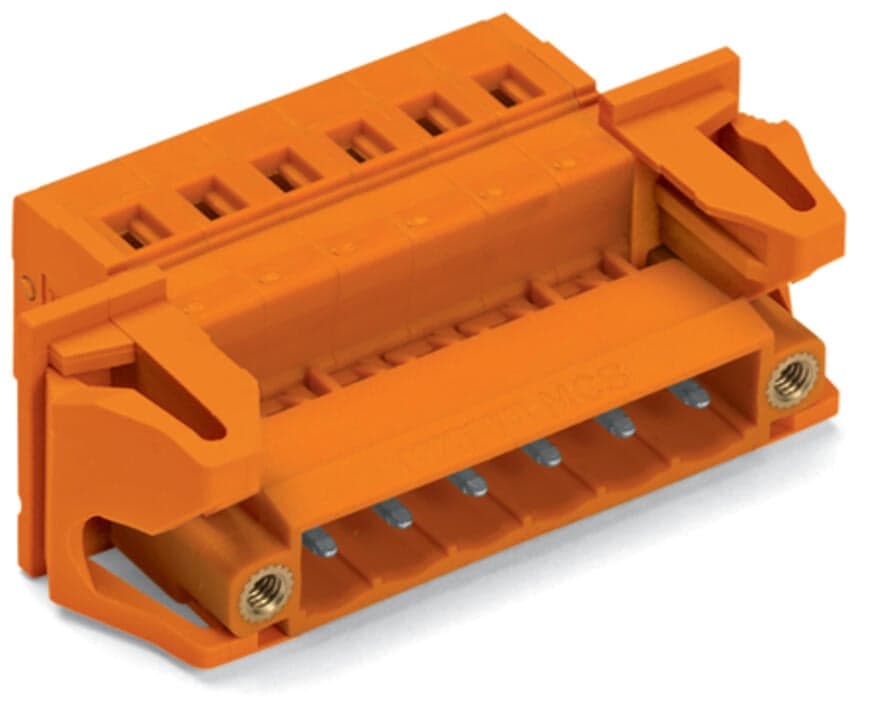

Product Model
231-634/129-000
Selling Points
- 1Universal Connection: Connects all conductor types with ease.
- 2CAGE CLAMP Actuation: Easy cable pre-assembly and on-unit wiring.
- 3Snap-in Flange: Versatile mounting options for panel or through-panel mounting.
- 4High-Quality Materials: Made with polyamide insulation and chrome nickel spring steel.
- 5Compliant with Standards: Meets UL and CSA standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 4 | Total number of potentials | 4 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5.08?mm?/ 0.2?inches | Width | 41.32?mm?/ 1.627?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 27.5?mm?/ 1.083?inches |
Variable coding | Yes | Housing sheet thickness | 0.5 … 2.5?mm?/ 0.02 … 0.098?inches |
Mounting type | Feed-through mounting | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | No | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Threaded flange | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.113MJ |
Weight | 9.2g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-03-09 | eCl@ss 9.0 | 27-44-03-09 |
ETIM 9.0 | EC002638 | ETIM 8.0 | EC002638 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821279990 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 8dc05bbf-0a6e-4fbb-9ae7-f7954fb63c05 | SCIP notification number (Belgium) | f3a1bda8-188e-47f4-a1e9-65aec993b486 |
SCIP notification number (Bulgaria) | 49737e14-8085-4cd1-8a88-0a1b6c3054ff | SCIP notification number (Czech Republic) | e3a8c37a-0201-46d0-899e-4406912ec30e |
SCIP notification number (Denmark) | 4dae22f2-0cac-4efe-a0b0-7bc412881ad1 | SCIP notification number (Finland) | 7b8b8d33-fc13-4c05-ab0b-c3e0762da648 |
SCIP notification number (France) | a02d451c-5d68-4b7f-84bb-5cf920d8c1be | SCIP notification number (Germany) | 008ea95b-0589-493e-8f4c-b8fb8b3294be |
SCIP notification number (Hungary) | b1e9d0d9-30f8-4917-9dbe-b000d7f39629 | SCIP notification number (Italy) | 8fe29e5b-a6d2-4f3b-b14a-acc3b912c8f5 |
SCIP notification number (Netherlands) | f14f7f01-db49-4399-b94d-163e1ca17a0a | SCIP notification number (Poland) | efb73eab-e2e1-4867-a9b5-0dc6983cb771 |
SCIP notification number (Romania) | e5d10991-c511-4896-b2c5-05804f76e276 | SCIP notification number (Sweden) | 013abbac-05dc-4436-8267-835197458fac |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 320V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 12A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 15A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Actuation direction 1 | Operation parallel to conductor entry | Actuation direction 2 | Operation perpendicular to conductor entry |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 4 |
Conductor entry direction to mating direction | 0° |
