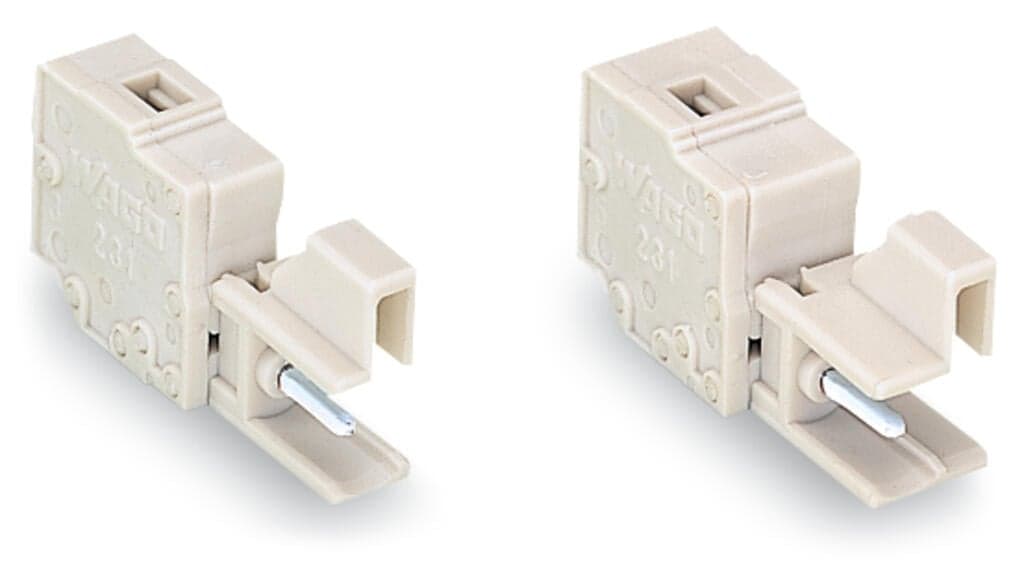

Product Model
231-661
Selling Points
- 1Suitable for various conductor types and multi-connection systems.
- 2Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation.
- 3Rated for 320 V and 4 kV surge voltage, ensuring reliable performance in demanding applications.
- 4Made from high-quality polyamide (PA66) with a flammability class of UL94 V0.
- 5Compliant with RoHS and certified by DEKRA, ABS, DNV, and Lloyds Register.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of connection types | 1 | Pin spacing | 5/5.08?mm?/ 0.197/0.2?inches |
Suitable | for female connectors | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.038MJ | Weight | 1.9g |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918284622 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III/2) | 250V | Rated surge voltage (III/2) | 4kV |
Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Specifications may be subject to change without notice
