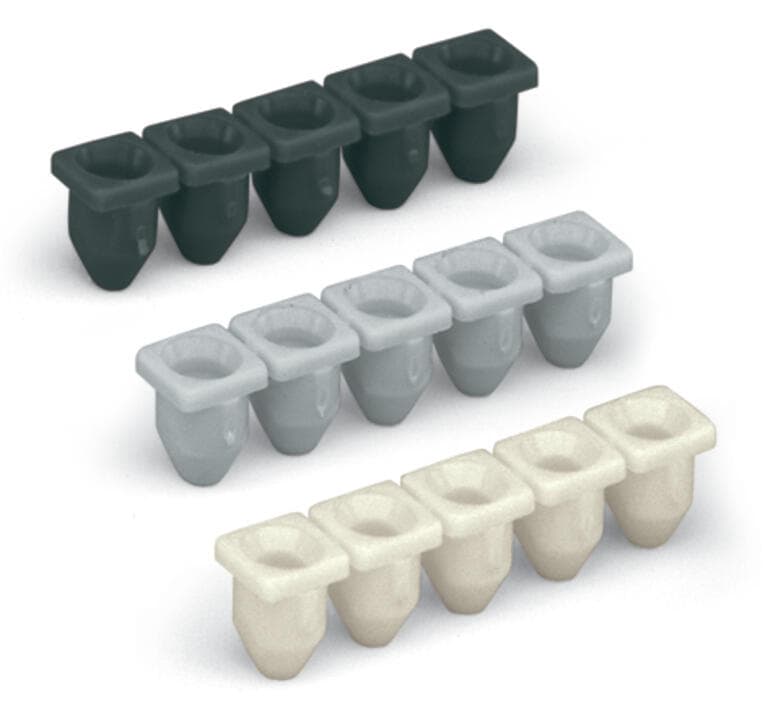

Product Model
231-674
Selling Points
- 17.5/7.62mm (0.295/0.3 inches) for precise connectivity.
- 2Manufactured from polyamide (PA66) for durability and resistance.
- 3Suitable for both male and female connectors with CAGE CLAMP or Push-in CAGE CLAMP connections.
- 4Meets UL94 V0 flammability class for safety in high-temperature environments.
- 5Available in strips of 5 items each, packaged in boxes of 200 pieces for efficient inventory management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 7.5/7.62?mm?/ 0.295/0.3?inches | Number of items per strip | 5 |
Suitable | for male and female connectors with CAGE CLAMP?or Push-in CAGE CLAMP?connection | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.007MJ | Weight | 0.2g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332121200 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
