Product Model
231-902
Selling Points

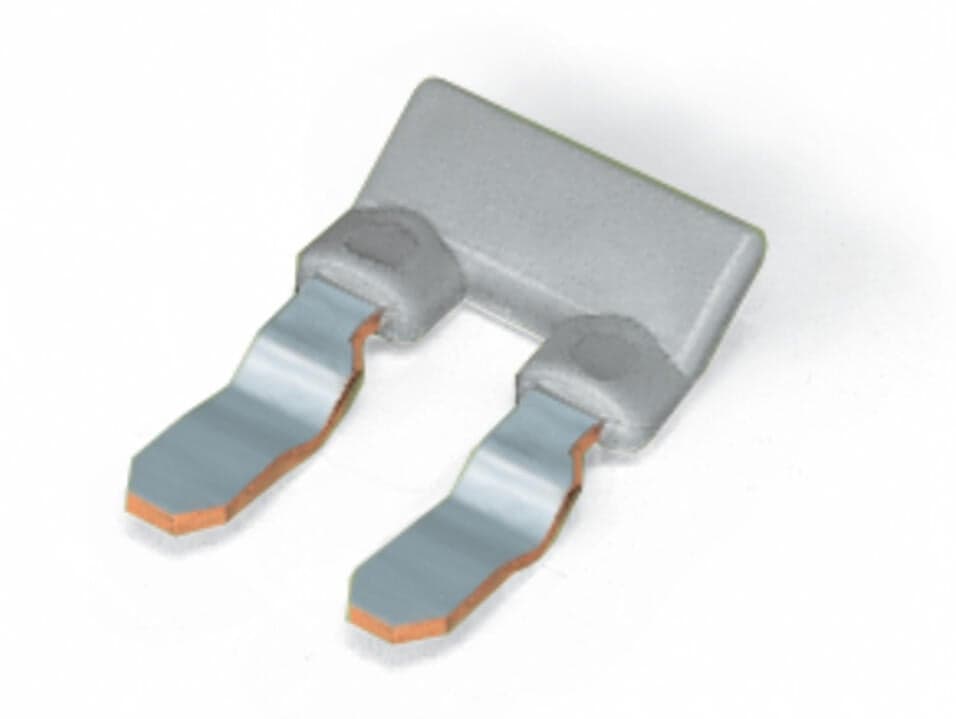

- 1The 231-902 jumper bar features a compact comb-style design suitable for 5mm and 5.08mm pin spacing.
- 2Compatible with both male and female connectors, ensuring easy integration into various multi connection systems.
- 3Constructed with durable materials, including polyamide 66 (PA 66) insulation and chrome-nickel spring steel clamping springs.
- 4Simplified installation process with CAGE CLAMP® actuation, reducing conductor size to 1.5mm².
- 5Meets international safety standards, including IEC/EN 60664-1 and UL 1059, ensuring reliable operation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 5/5.08?mm?/ 0.197/0.2?inches | Width | 10?mm?/ 0.394?inches |
Depth | 5?mm?/ 0.197?inches | Jumper assignment | 1-2 |
Suitable | for male and female connectors with CAGE CLAMP?connection | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.001MJ | Weight | 0.2g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454045425 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Rated current | 12A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 2 |
Specifications may be subject to change without notice
