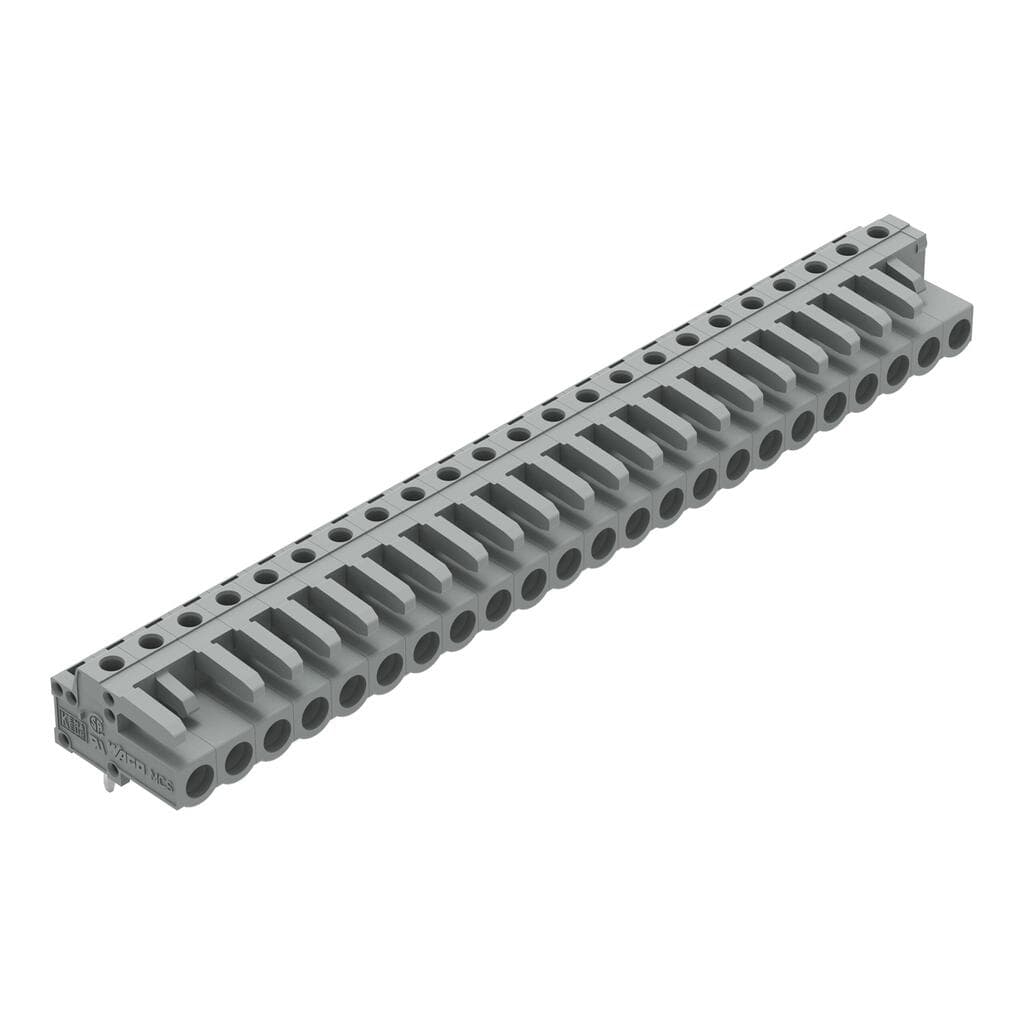

Product Model
232-253
Selling Points
- 1Reliable connectivity solutions for industrial automation and building technology.
- 2Angled solder pins for easy PCB mounting in both horizontal and vertical orientations.
- 3Touch-proof PCB outputs ensure safe and secure connections.
- 4Compatible with other WAGO products for seamless integration.
- 5High-performance and durable design for long-lasting use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 23 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
Width | 116.5?mm?/ 4.587?inches | Height | 16.6?mm?/ 0.654?inches |
Height from the surface | 11.6?mm?/ 0.457?inches | Depth | 18.25?mm?/ 0.719?inches |
Solder pin length | 5mm | Solder pin dimensions | 0.6 x 1?mm |
Drilled hole diameter with tolerance | 1.3(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female header |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
Locking of plug-in connection | none | PCB contact | THT |
Solder pin arrangement | over the entire female connector (in-line) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper alloy |
Contact plating | Tin | Fire load | 0.49MJ |
Weight | 21.2g | Limit temperature range | -60 … +85?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918579414 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Number of poles | 23 |
Specifications may be subject to change without notice
