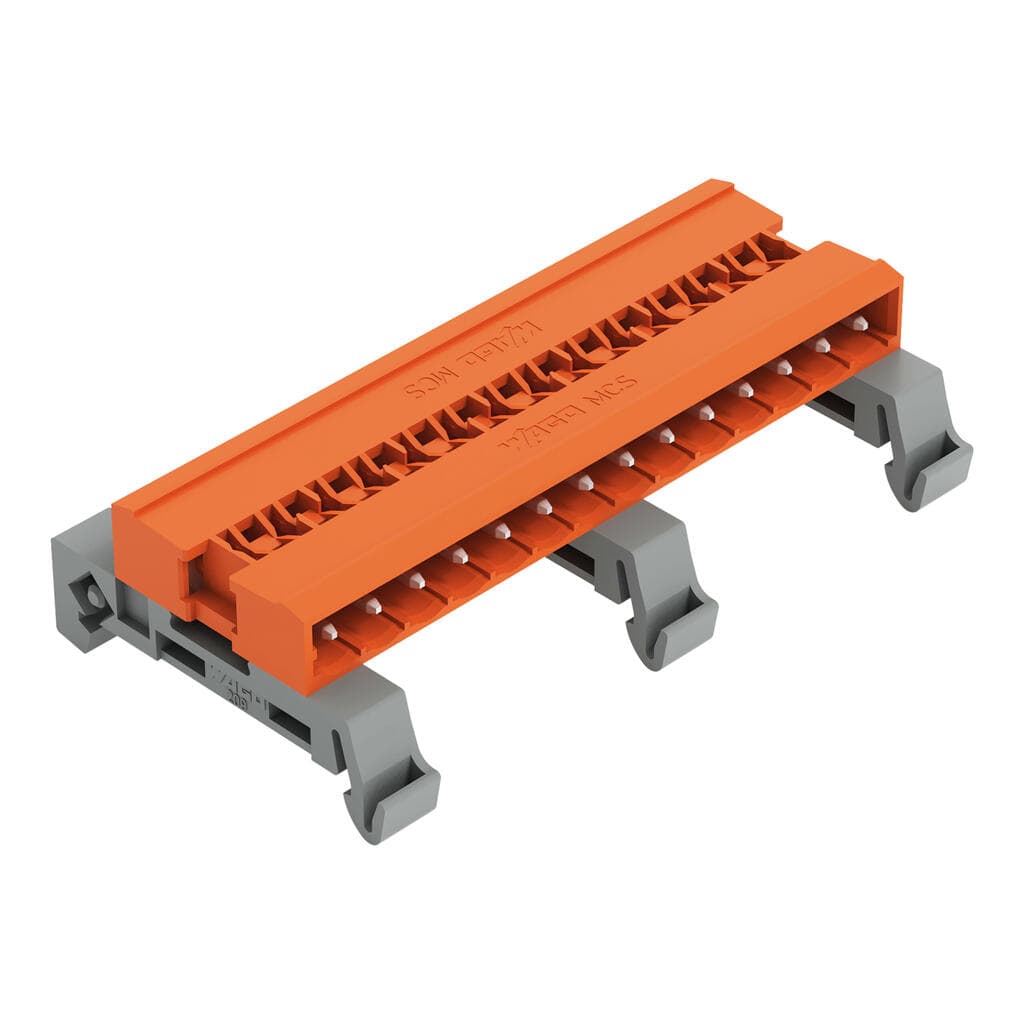

Product Model
232-544/007-000
Selling Points
- 1DIN-35 Rail Mounting: Easily integrates with DIN-35 rail systems.
- 214-Pole Configuration: Suitable for complex circuit connections.
- 35.08 mm Pin Spacing: Standardized spacing for precise connections.
- 4Orange Color: Durable and easily identifiable orange color.
- 5Polyamide Insulation: High-quality insulation material for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | Notice: Male connectors must not be live when disconnected! |
Variants: | Other pole numbers | Total number of potentials | 14 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5.08?mm?/ 0.2?inches | Width | 74.32?mm?/ 2.926?inches |
Height | 25.9?mm | Height from the surface | 6.5?mm |
Height from upper-edge of DIN-rail | 15?mm?/ 0.591?inches | Depth | 42.5?mm?/ 1.673?inches |
Variable coding | Yes | Mounting type | DIN-35 rail |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for pluggable connector | Mismating protection | No |
Plugging without loss of pin spacing | No | Locking of plug-in connection | none |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.295MJ |
Weight | 14g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454340032 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Number of poles | 14 |
Specifications may be subject to change without notice
