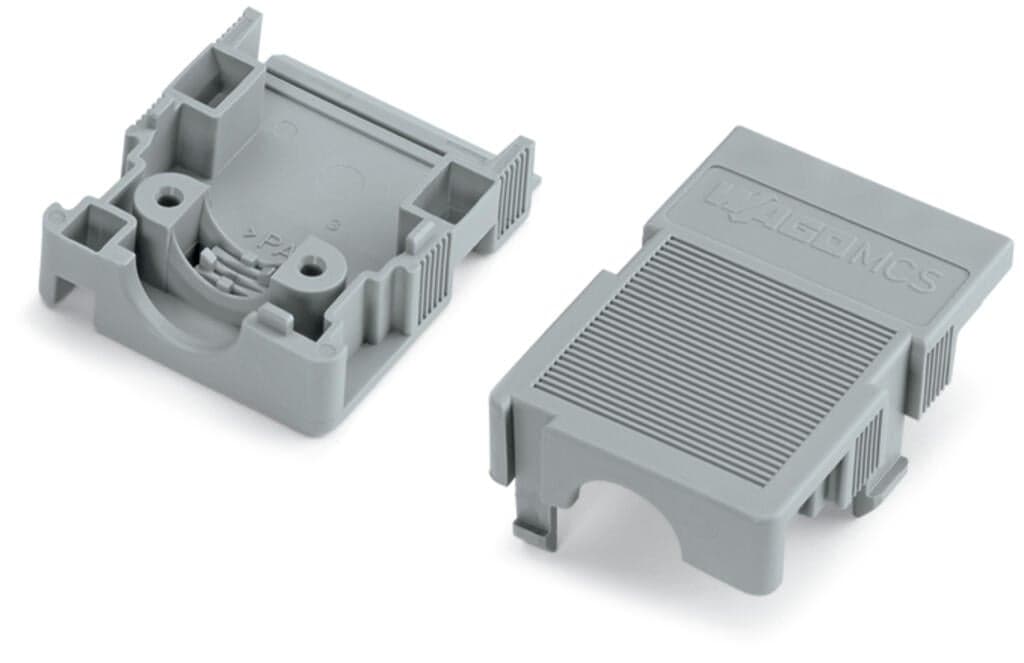

Product Model
232-605
Selling Points
- 1Durable polyamide insulation and robust design ensure long-lasting performance.
- 2Suitable for both standard male and female connectors, offering flexibility in various applications.
- 3Reliable strain relief housing ensures secure and stable connections in electrical and automation systems.
- 4Seamlessly integrates into existing setups, providing a hassle-free installation process.
- 5Meets ROHS compliance standards, ensuring safe and environmentally friendly use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 5?mm?/ 0.197?inches | Width | 28?mm?/ 1.102?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 41.5?mm?/ 1.634?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.401MJ | Weight | 6.7g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332283045 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 5 |
Specifications may be subject to change without notice
