Product Model
232-609
Selling Points
- 1High-Quality Electrical Connectors: Designed for industrial automation, ensuring reliable and secure connections.
- 29-Pole Configuration: Compatible with 9-pole connectors, providing ample space for multiple connections.
- 35mm Pin Spacing: Standard 5mm pin spacing for easy integration with various connector systems.
- 4Cable Clamp Compatibility: Suitable for cable clamps, ensuring a secure fit and reduced risk of disconnection.

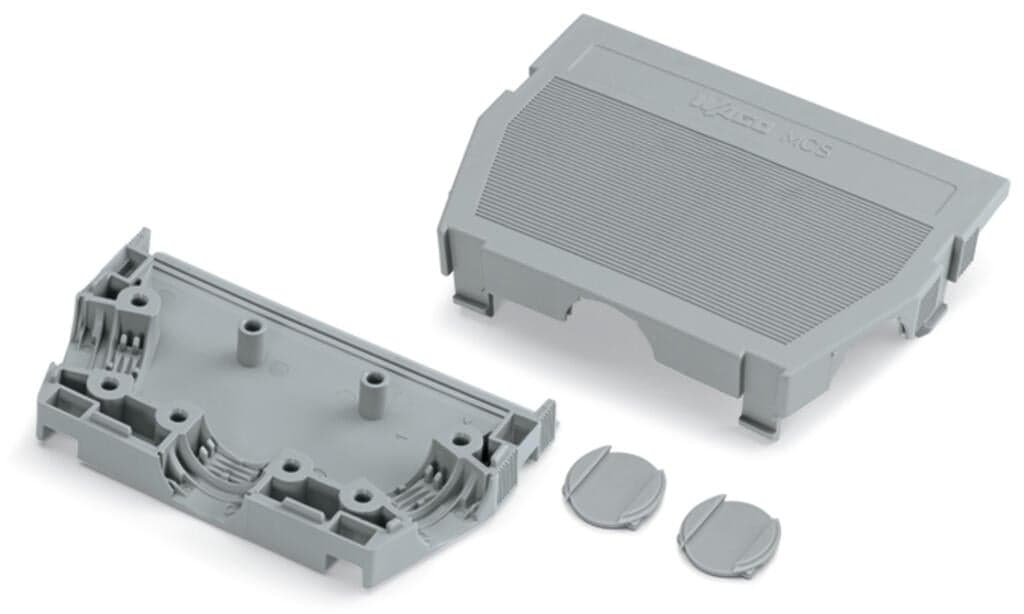

- 5Includes 2 Covers: Comes with two covers included, providing complete protection against environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 5?mm?/ 0.197?inches | Width | 48?mm?/ 1.89?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 54?mm?/ 2.126?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.794MJ | Weight | 12.8g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332225700 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 9 |
Specifications may be subject to change without notice
