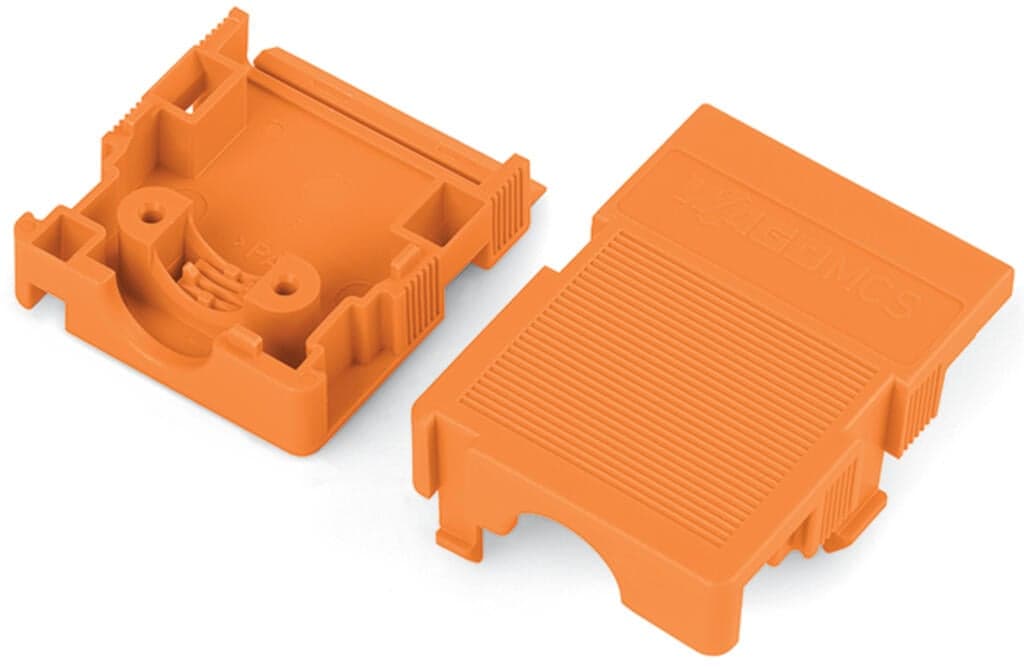

Product Model
232-633
Selling Points
- 1High-Quality Material: Made from durable polyamide (PA66) for long-lasting performance.
- 2Efficient Connectivity: Provides reliable connections with a 3-pole design and 5.08 mm pin spacing.
- 3Easy Installation: Snap-on type for quick and simple mounting.
- 4Versatile Compatibility: Suitable for standard male and female connectors, enhancing system integration.
- 5Compliance and Certifications: Meets ROHS compliance and certified by UL, ABS, and DEKRA for added safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 5.08?mm?/ 0.2?inches | Width | 18?mm?/ 0.709?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 41.5?mm?/ 1.634?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.138MJ | Weight | 4.6g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332283090 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 |
Specifications may be subject to change without notice
