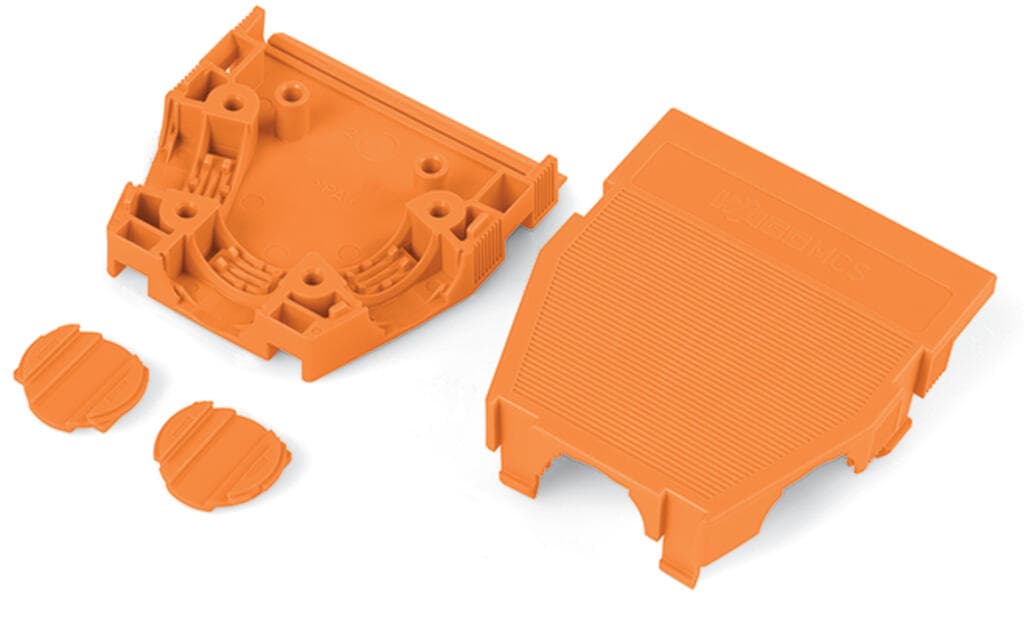

Product Model
232-640
Selling Points
- 1Snap-On Type: Easy installation with a snap-on mechanism.
- 210-Pole Connectivity: Suitable for applications requiring up to 10 poles.
- 35.08 mm Pin Spacing: Compatible with standard 5.08 mm pin spacing.
- 4Cable Clamp Support: Designed for use with cable clamps for secure connections.
- 5Orange Color: Durable orange housing for easy identification and visibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 5.08?mm?/ 0.2?inches | Width | 53.8?mm?/ 2.087?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 54?mm?/ 2.126?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.411MJ | Weight | 13.7g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332204897 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 10 |
Specifications may be subject to change without notice
