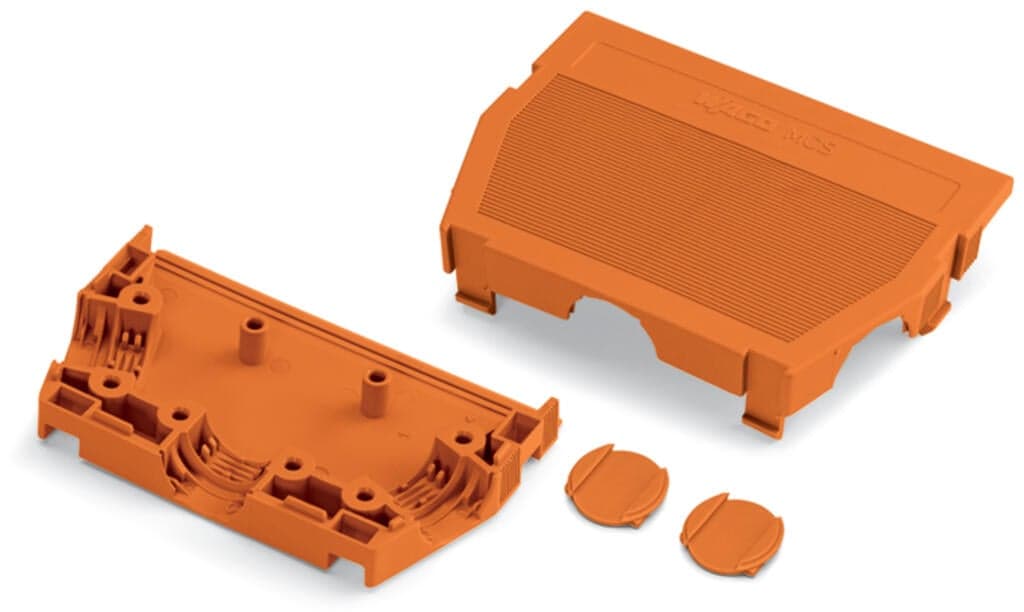

Product Model
232-646
Selling Points
- 1Suitable for standard male and female connectors.
- 216-pole configuration with 5.08 mm pin spacing.
- 3Orange color with polyamide (PA66) insulation material.
- 4Removable built-in lockout caps for added security.
- 5Compliant with UL and RoHS standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 5.08?mm?/ 0.2?inches | Width | 85?mm?/ 3.346?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 85?mm?/ 3.346?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.636MJ | Weight | 21.2g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454826185 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 16 |
Specifications may be subject to change without notice
